Why choose the variant without soldered header?

If you want to solder the module directly onto your own board, connect it with a ribbon cable, or implement an alternative connection method, this variant is the right choice. The header is included – you decide whether and how you use it. This saves rework and avoids desoldering.

What is the difference from the soldered variant?

Purely mechanical. The soldered variant (W6001a) is ready to use immediately – plug in and go. The "header extra" variant (W6001h) is better if you want to remain flexible or mount more compactly. Functionally identical.

Do I need soldering experience?

Only if you want to solder the supplied header or another connection yourself. For simply plugging into a socket, however, the pre-soldered variant W6001a would be the better choice.

Can I control the module via app?

Yes, via Bluetooth. Compatible apps include the Blackout Lighting Console App and the Luminair App for iOS.

Which DMX standards are supported?

CRMX Classic, W-DMX (G3, G4, G4S), DMX512A including RDM, and Bluetooth.

Which antenna is compatible?

The antenna connector is IPEX/u.fl. For external mounting, adapters to RP-SMA are recommended. Suitable options can be found under Radio and Antennas.

What is the alternative if I want to go deeper into the protocol?

For developers who want to communicate directly via SPI and have full control over DMX packets, the LUMEN CONTROL (W6000) is the appropriate choice – it omits the plug-and-play logic and exposes SPI directly.

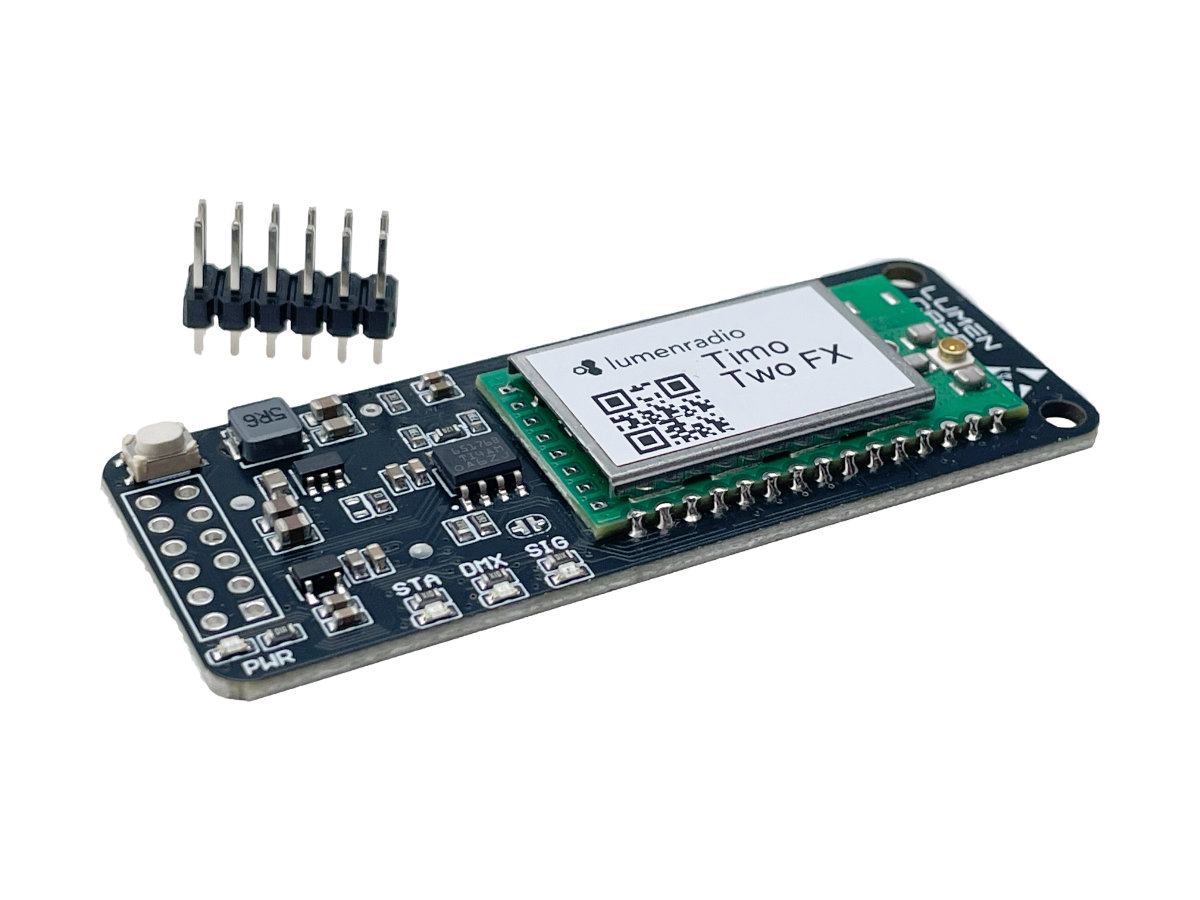

Radical Wireless LUMEN CARD TimoTwo CRMX Module — Isometric View

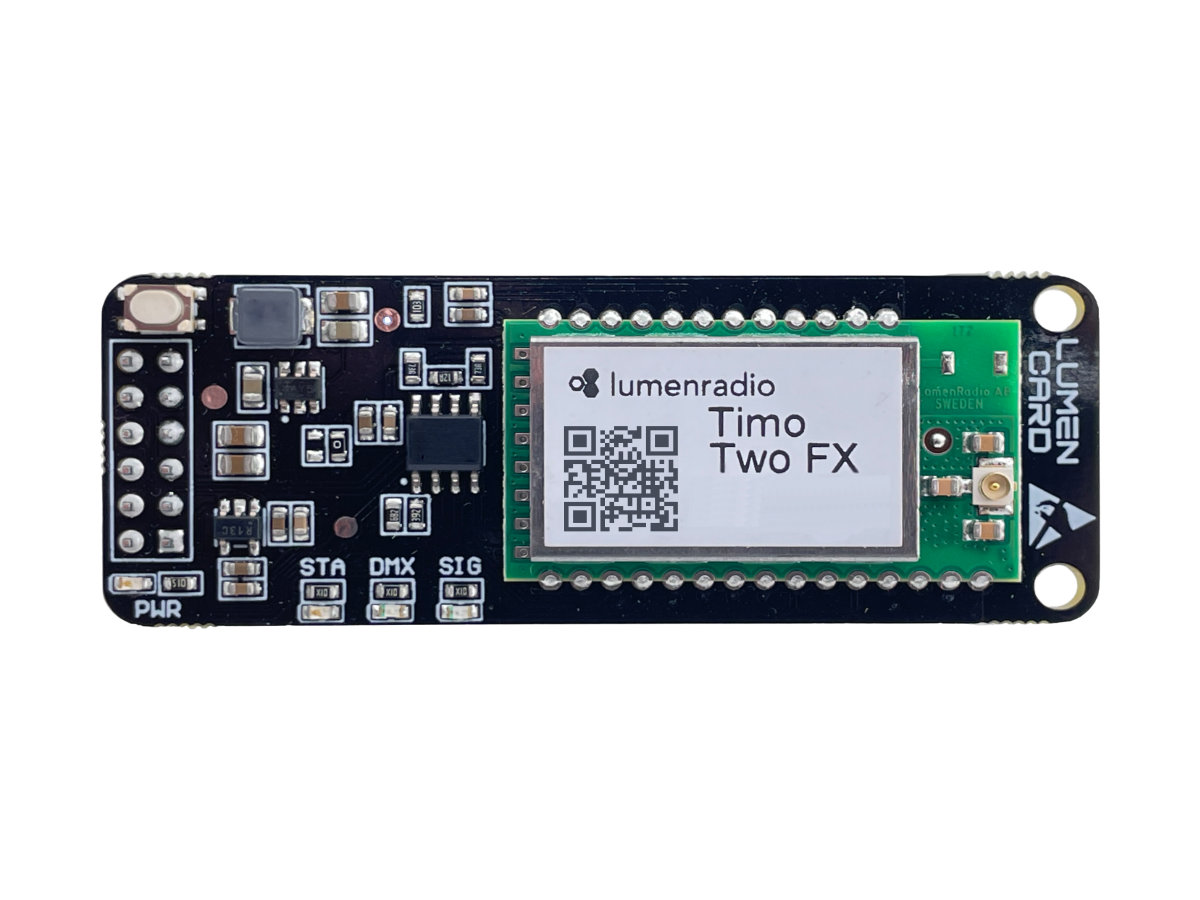

Radical Wireless LUMEN CARD TimoTwo CRMX Module — Top View

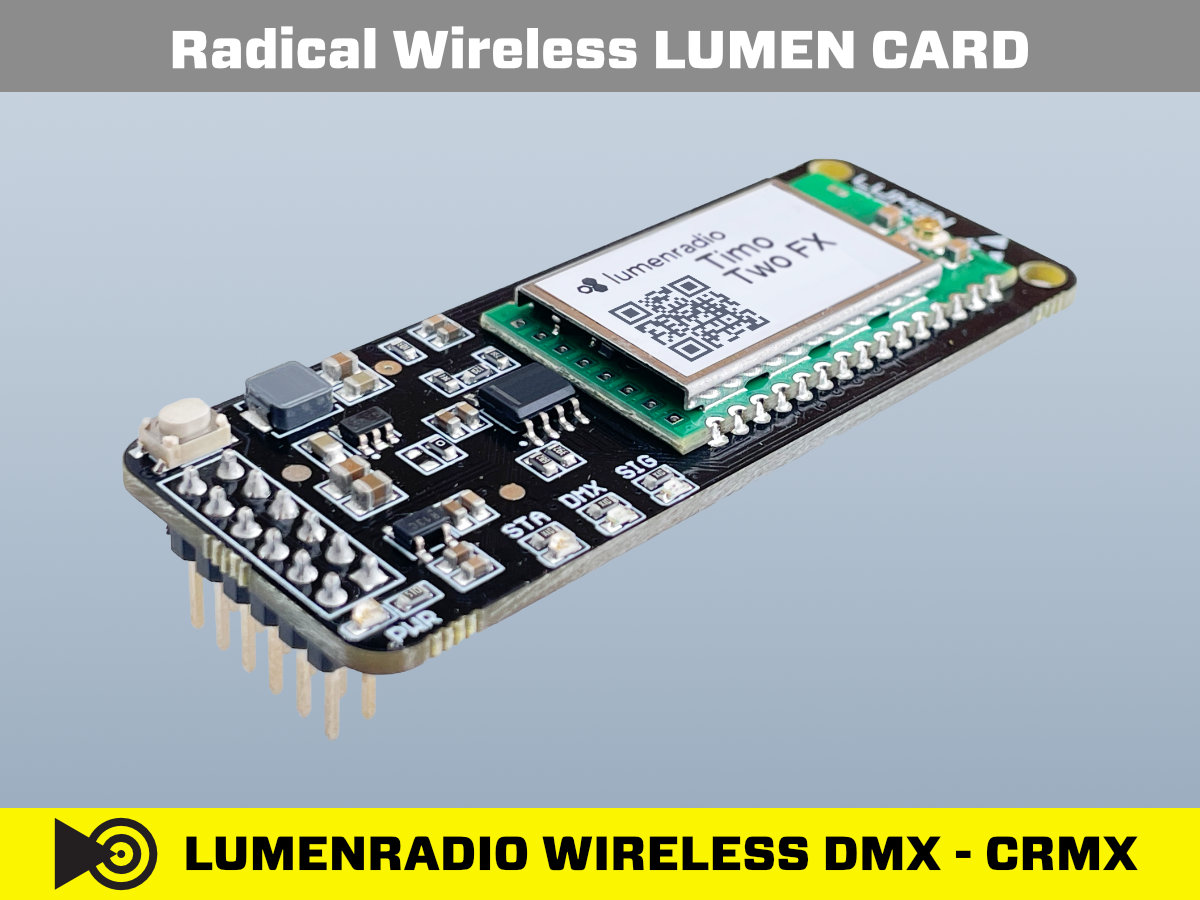

Radical Wireless LUMEN CARD TimoTwo CRMX Module Header extra

Header: 2x6 Header nicht verlötet

LUMEN CARD TimoTwo – Lumenradio-based CRMX/W-DMX module with Bluetooth, simple plug-and-play, wireless control of DMX lights and LED dimmers – header not soldered

Quantity	Unit price
1	€159.90
From 2	€155.10 -3 %
From 5	€147.10 -8 %

*VAT is calculated automatically at checkout
based on your business or country

New stock is on the way

Ready to ship in approx. 14 days, delivery time 1-3 days

Header

2x6 Header verlötet

2x6 Header nicht verlötet

Recommended accessories

RP-SMA Rod Antenna 5cm 2.0dBi Gain €8.49

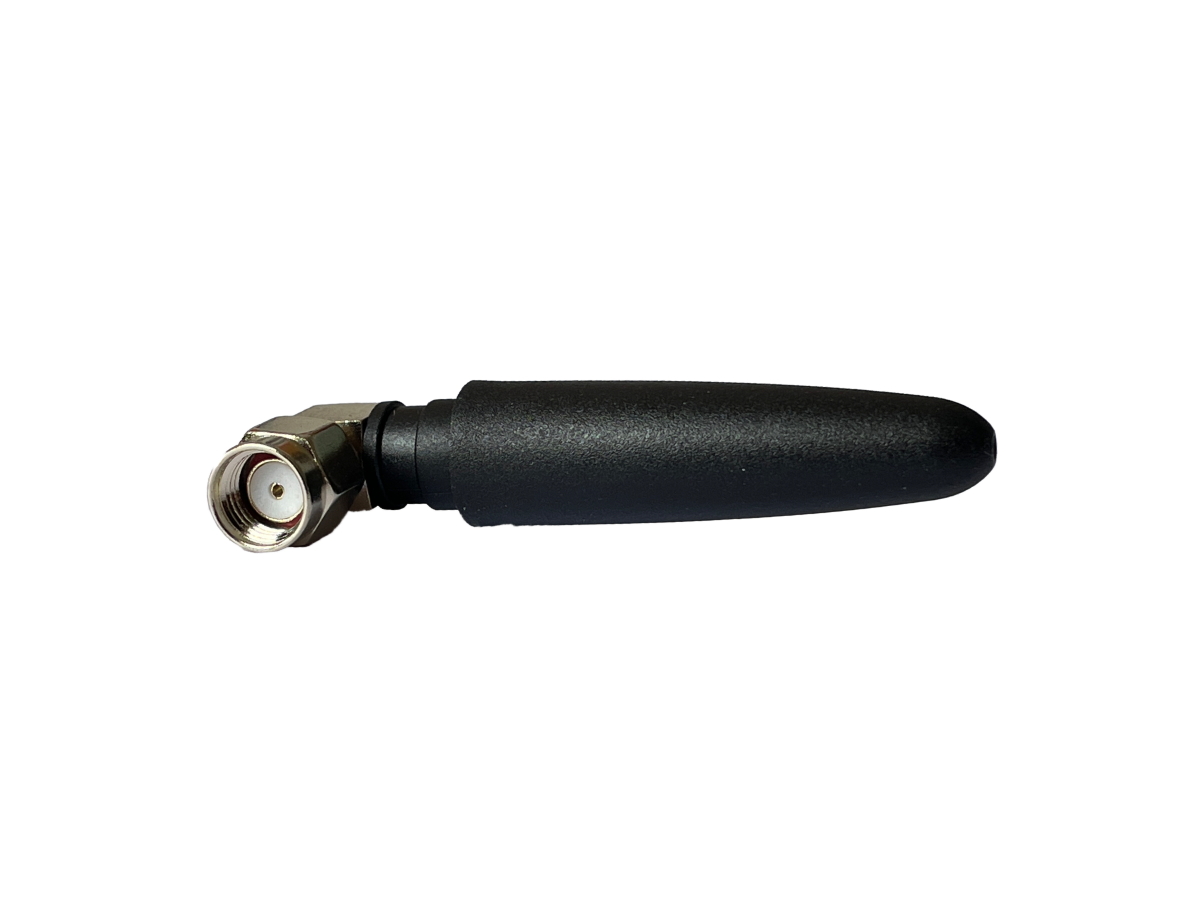

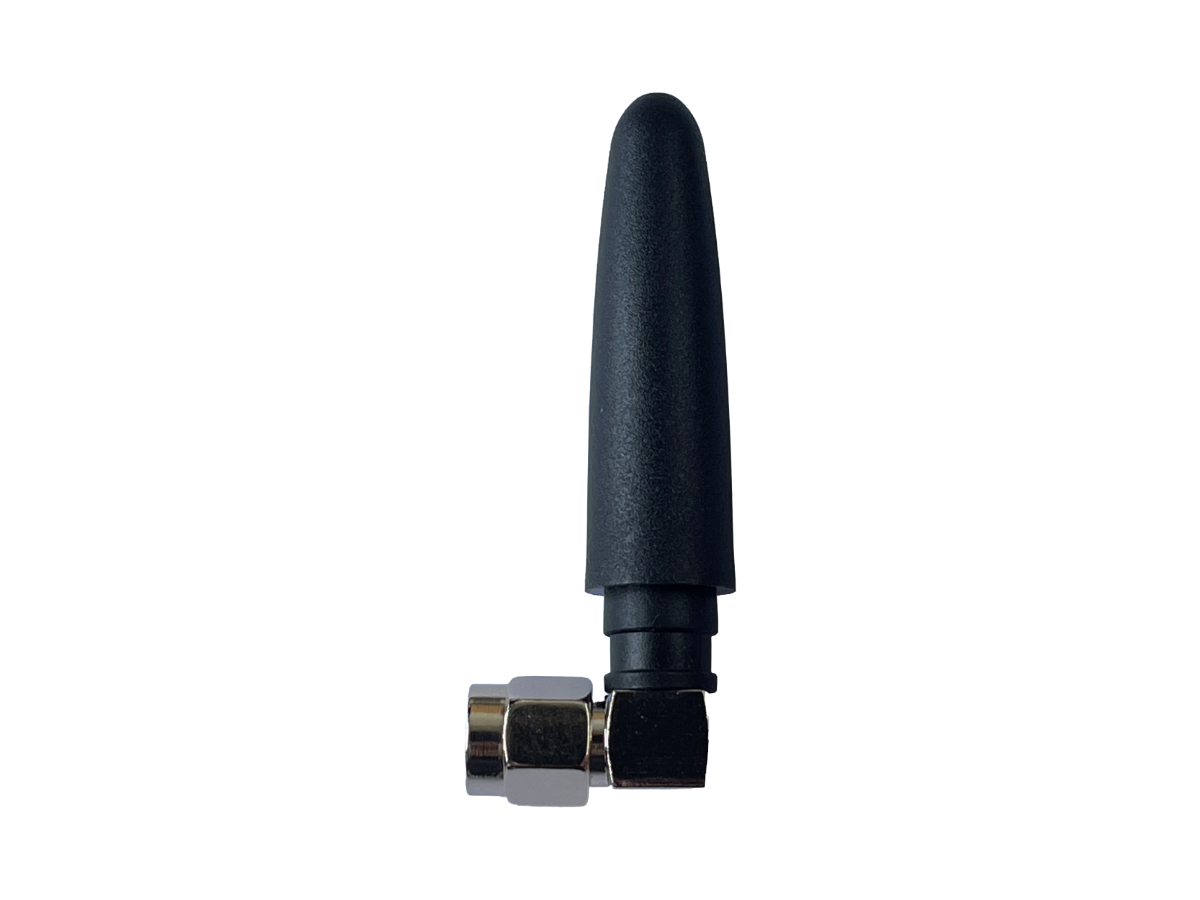

RP-SMA Rod Antenna 5cm 2.0dBi Gain right angle 90° €8.90

RP-SMA to IPEX Adapter 5cm RG 1.37 €12.98

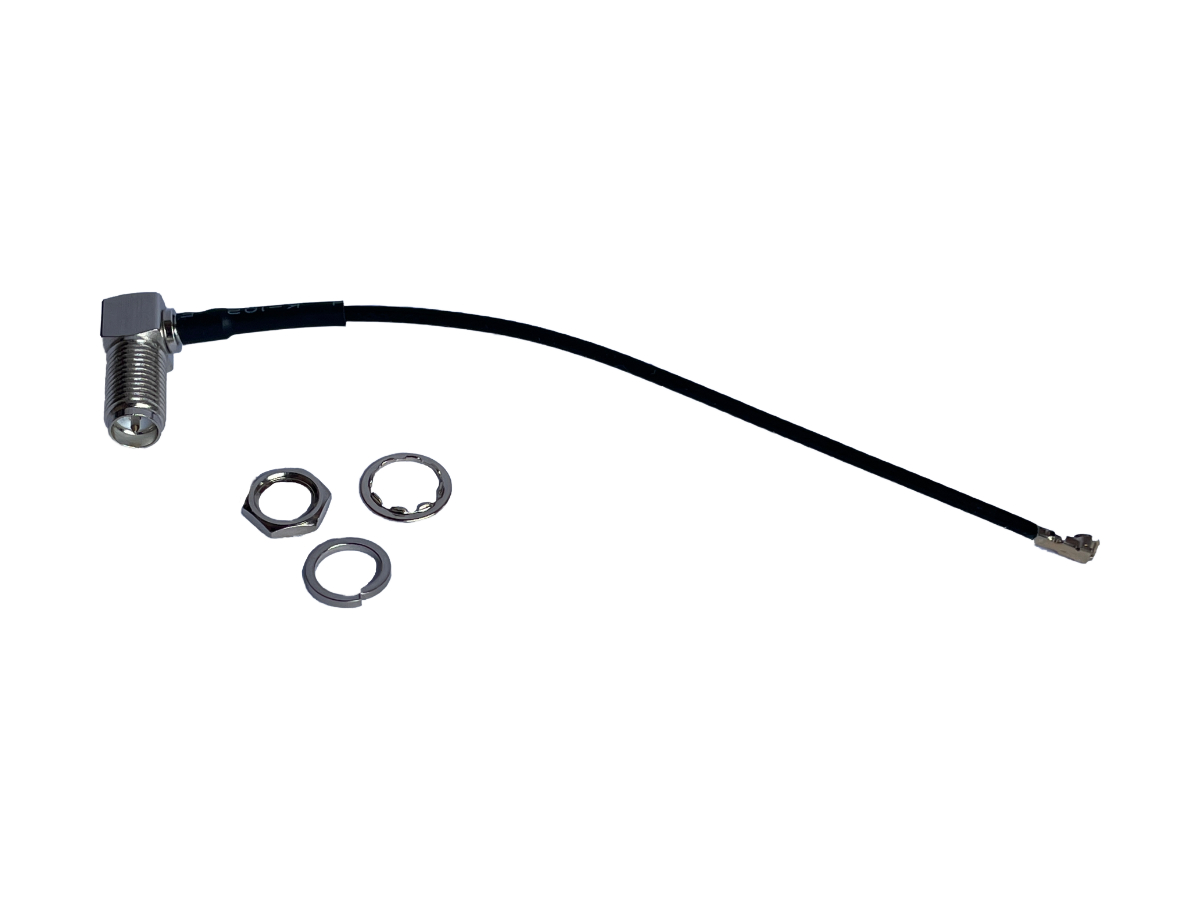

RP-SMA to IPEX Adapter 10cm RG178 right angle €13.45

Product number: W6001h

Stock: 0

Manufacturer: Graf Lichttechnik

Manufacturer number: W6001h

Product information "Radical Wireless LUMEN CARD TimoTwo CRMX Module Header extra"

This module is designed as a plug-and-play CRMX module. It is easy to integrate without requiring any additional programming.
The header pins provide direct access to DMX, signal level LEDs and the mandatory LINK button.
All basic feedback LEDs such as STATUS, LINK and LOW SIGNAL, as well as the LINK button, are directly accessible on the top of the module.

The Radical Wireless LUMEN CARD TimoTwo module with Lumenradio's best CRMX and WDMX technology enables simple wireless control of DMX fixtures and LED dimmers. Even Bluetooth is supported. This gives you the option to use your preferred iOS app, such as the Blackout Lighting Console App or the Luminair App.

This is a variant where the header has not yet been soldered.

Current hardware revision: v1.0.1
Changes: solder jumper for enabling/disabling the UI LEDs

Key Technical Specifications

Radio technology: Lumenradio TimoTwo – CRMX, W-DMX and Bluetooth
Operating voltage: 5 V DC nominal, range 5–36 V DC
Dimensions: 65 × 25 × 5.2 mm – compact for OEM integration
Header: 2×6, 2.54 mm pitch – supplied loose (not soldered)
Transmit power: 5–20 dBm
Current consumption: max. 300 mA
No programming required: plug-and-play

Typical Applications

Direct SMD mounting: attach module flat on a custom board
Custom connections: own pin headers, SMD pads or ribbon cable connectors
Space-critical designs: installable without the vertical header height
OEM series production: solder-populated in your own production

Current:	max. 300 mA
Frequency Band:	2402 MHz - 2480 MHz
Header:	2x6 nicht verlötet
Height:	5.20 mm
Input Voltage Range:	5 - 36 VDC
Input Voltage nominal:	5.00 VDC
Interface:	ohne
Length:	65.00 mm
Operating temperature range:	-20°C - +60°C
Pitch:	2.54 mm
Supported protocols:	CRMX, WDMX, DMX, RDM, Bluetooth
Transmission power:	5 - 20 dBm
Width:	25.00 mm

hidden

Manufacturer information according to GPSR

Graf Lichttechnik UG
Goerzallee 299
14167 Berlin
Germany
info@graf-lichttechnik.de
+49 151 22348820
Manufacturer website

Responsible person according to GPSR

Graf Lichttechnik UG
Goerzallee 299
14167 Berlin
Germany
info@graf-lichttechnik.de
+49 151 22348820

Similar Products

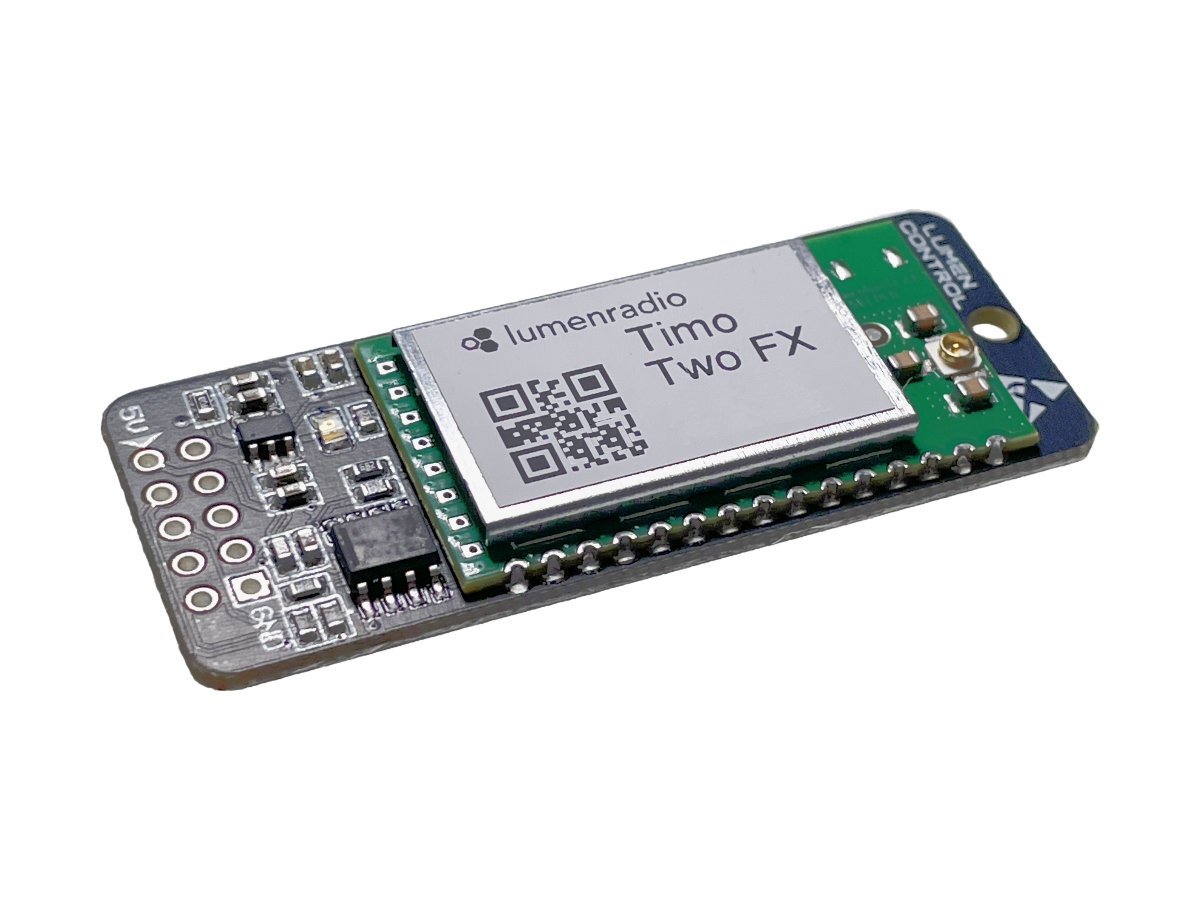

Radical Wireless LUMEN CONTROL TimoTwo CRMX Module - Isometric View

W6000

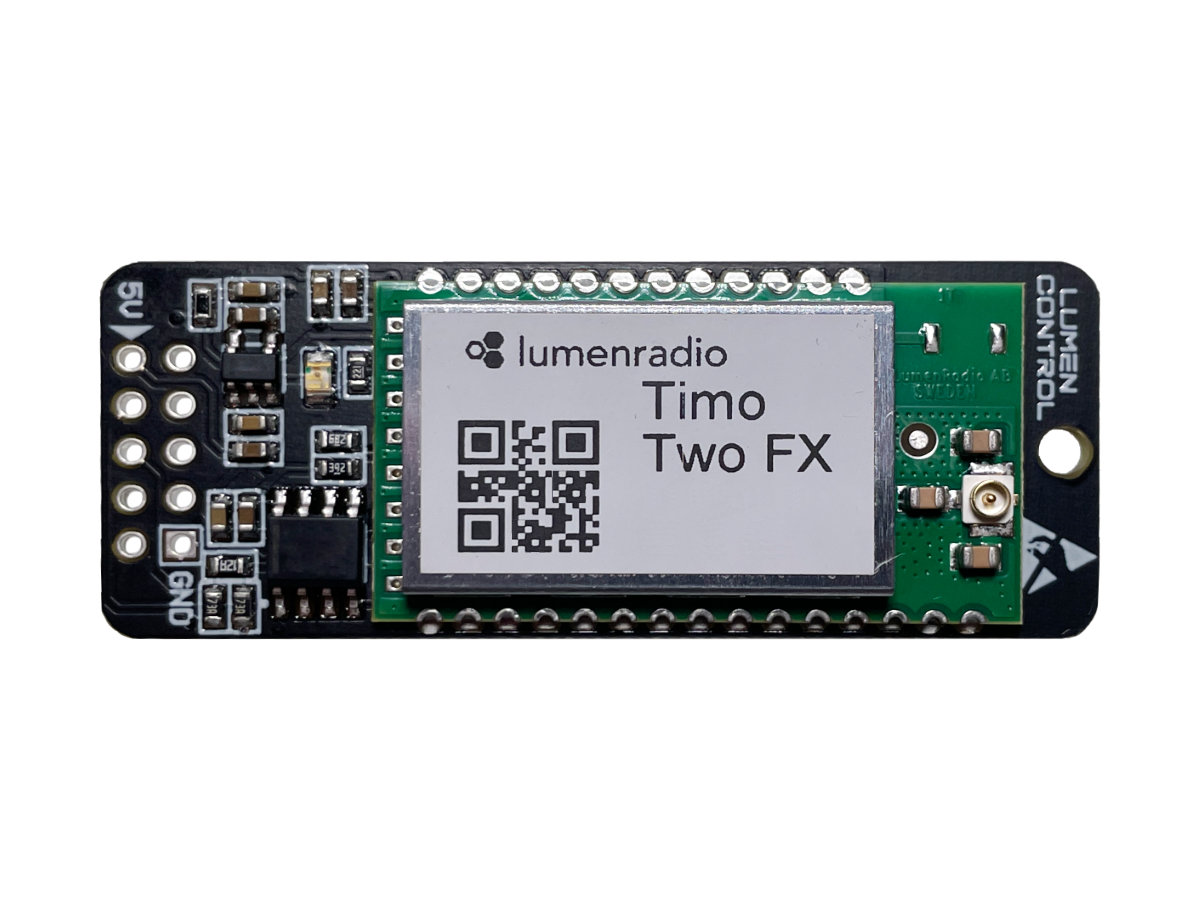

Radical Wireless LUMEN CONTROL TimoTwo CRMX Module
