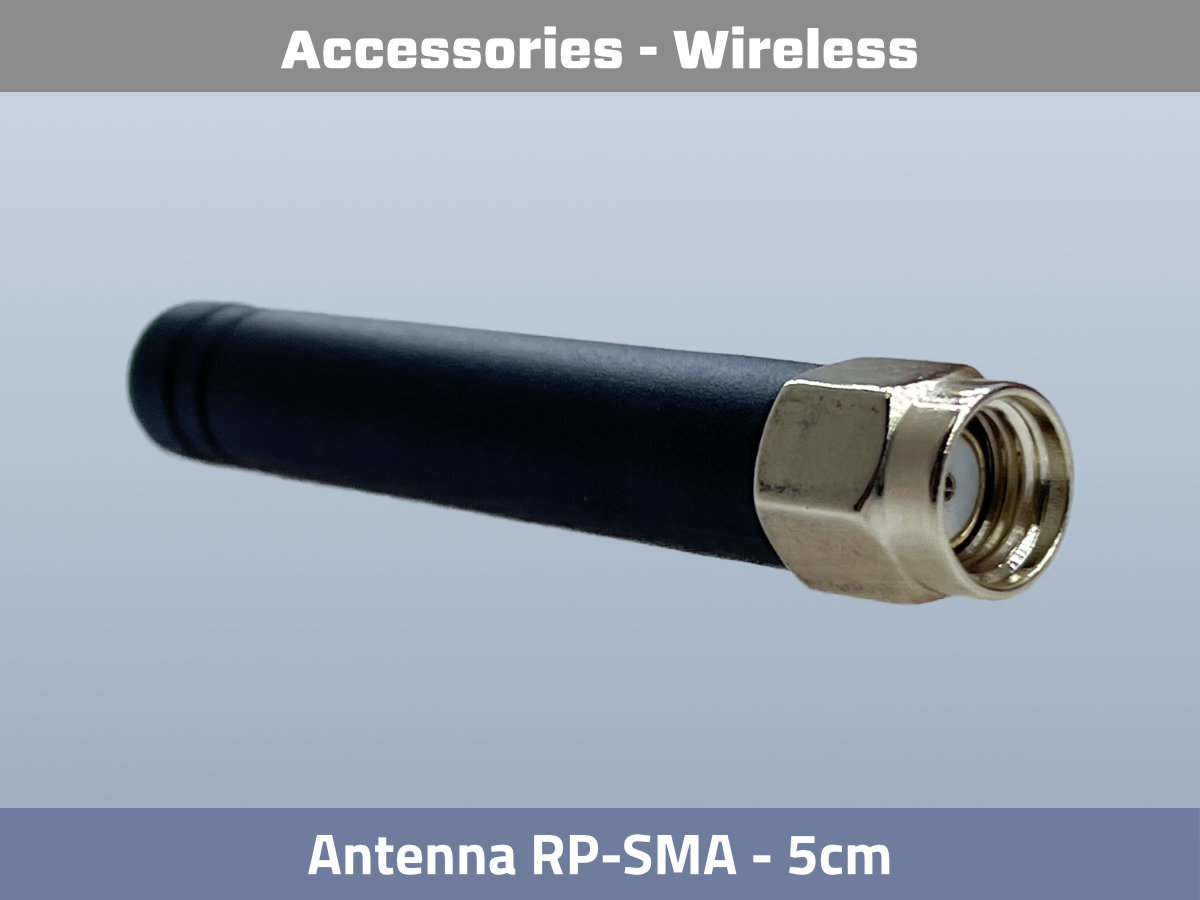

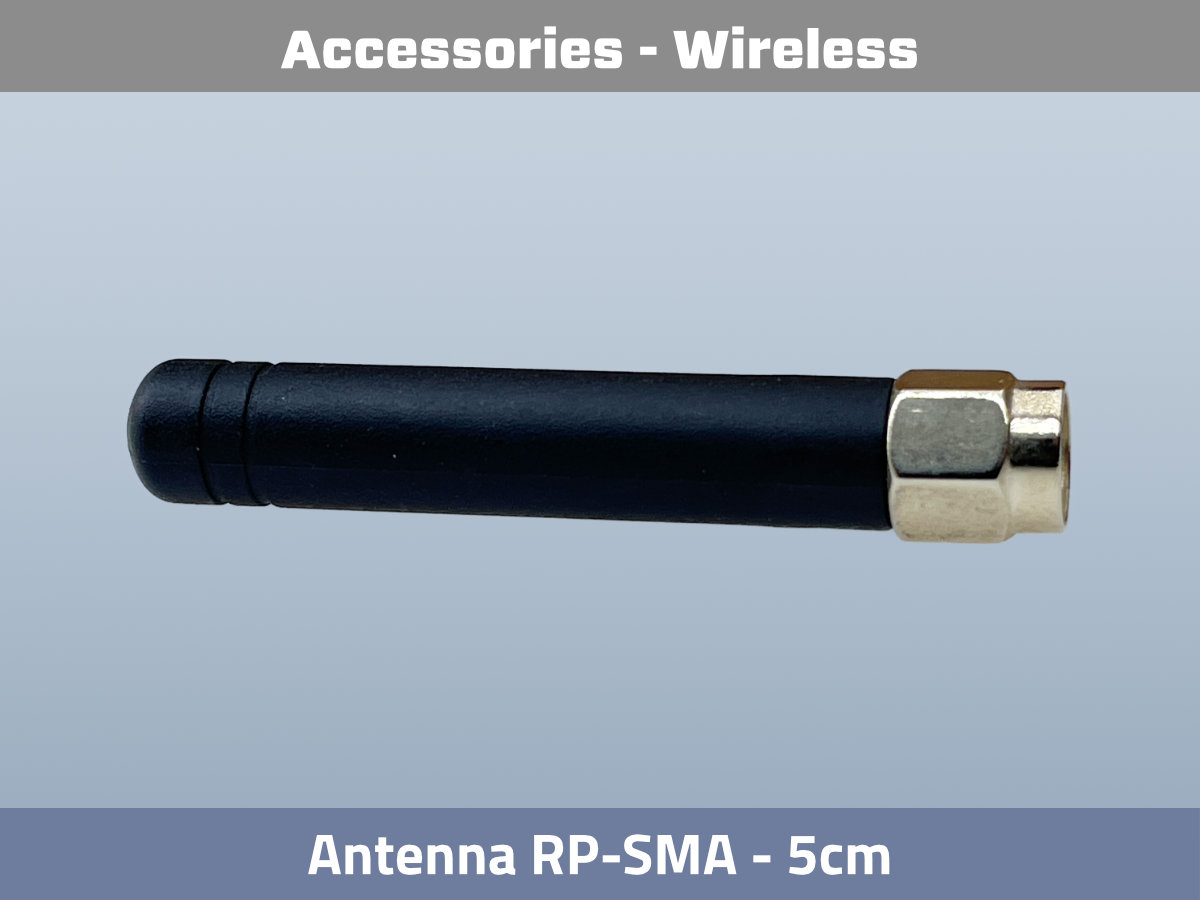

RP-SMA Rod Antenna 5cm 2.0dBi Gain
€8.49
Available, delivery time: 1-3 days
Product information "RP-SMA Rod Antenna 5cm 2.0dBi Gain"
Short RP-SMA stub antenna, 5 cm, 2.0 dBi gain. Improves 2.4 GHz radio connectivity for wireless DMX systems, Wi-Fi modules and IoT applications. Omnidirectional, 50 Ohm.
Key Technical Specifications
- Frequency: 2.4 GHz
- Gain: 2.0 dBi
- Connector: RP-SMA (male)
- Length: 5 cm
- Radiation pattern: omnidirectional
- Impedance: 50 Ohm
Frequently Asked Questions
All systems with an RP-SMA socket in the 2.4 GHz band – particularly wireless DMX modules such as Blackbird FX BLE (W0305) or LUMEN CARD TimoTwo (W6001a), as well as Wi-Fi routers, access points and IoT modules.
RP-SMA stands for Reverse Polarity SMA – the centre pin is swapped compared to standard SMA. This antenna has an RP-SMA plug (male), matching RP-SMA sockets (female) on the device.
Noticeably improved range and signal stability at a compact size. A good compromise between size and performance for standard installation situations.
Yes. The 90° version (K40834-2.0) is ideal for space-saving side mounting in flat enclosures.
For devices with IPEX/u.fl connections (e.g. LUMEN CARD or LUMEN CONTROL), the RP-SMA to IPEX adapter (K40810) is required as an intermediary.
| Connection: | RP-SMA |
|---|---|
| Diameter: | 7.80 mm |
| Frequency Band: | 2.4 GHz |
| Gain: | 2.0 dBi |
| Impedance: | 50 Ohm |
| Length: | 5.00 cm |
