When is the 90° version better than the straight variant?

When the antenna needs to project sideways – in flat enclosures, on walls, or where a straight antenna would cause mechanical interference. The 90° angle allows the antenna to align parallel to the mounting surface. The straight version K40809-2.0 suits setups with sufficient clearance.

Do I need an adapter for the LUMEN CARD?

Yes. The LUMEN CARD (W6001a) has an IPEX/u.fl connector. The RP-SMA to IPEX adapter (K40810) is required.

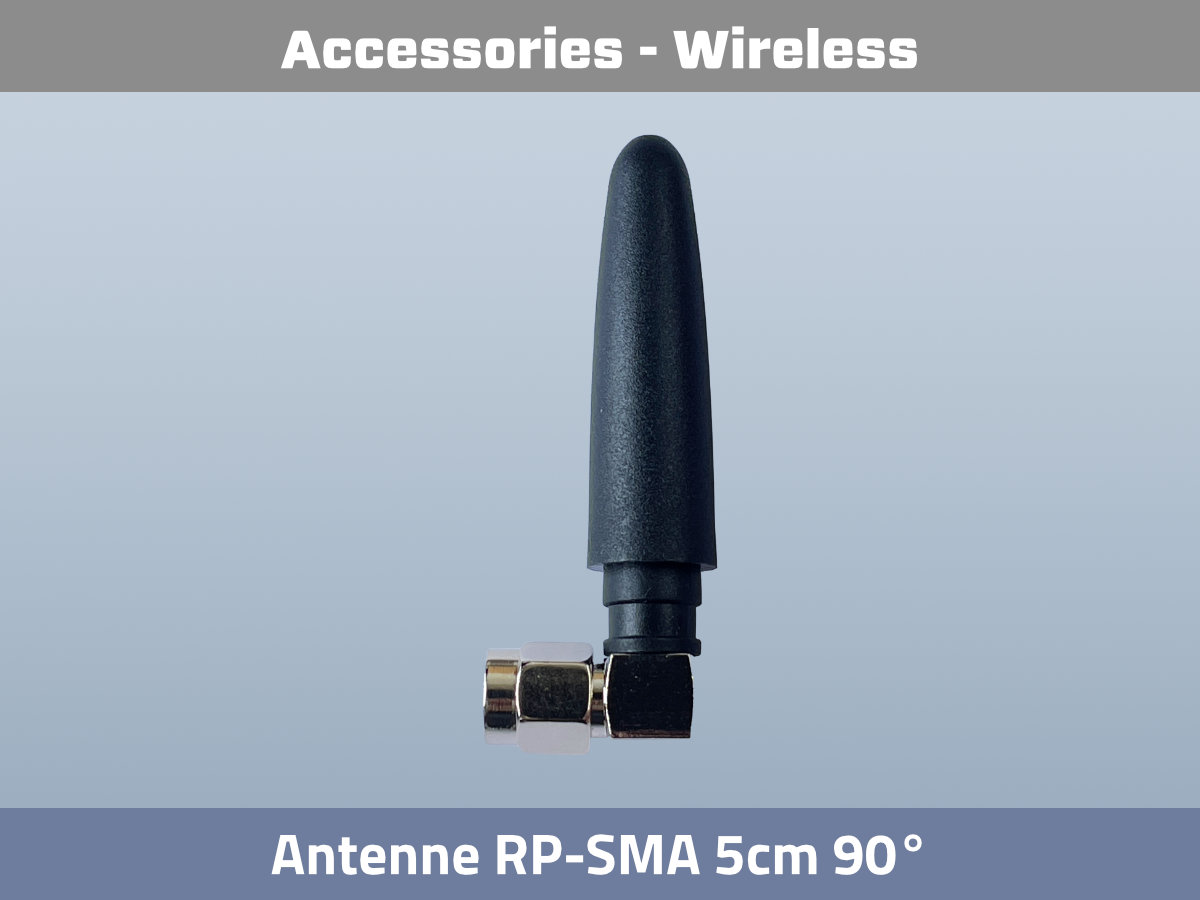

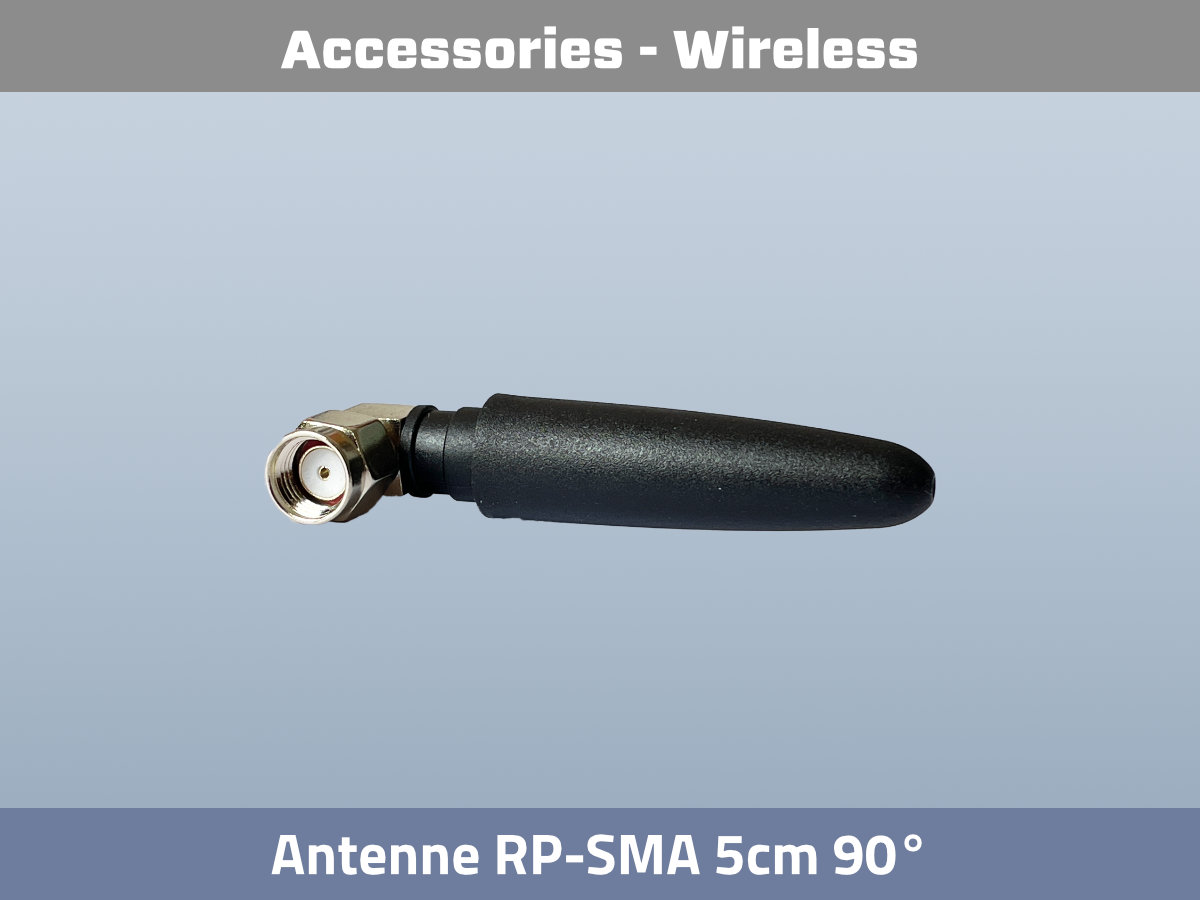

RP-SMA Rod Antenna 5cm 2.0dBi Gain right angle 90°

RP-SMA Rod Antenna 5cm 2.0dBi Gain right angle 90°

Name: RP-SMA Rod Antenna 5cm 2.0dBi Gain right angle 90°
Brand: Graf Lichttechnik
SKU: K40834-2.0
Price: 8.90 EUR
Availability: InStock

RP-SMA whip antenna 90°, 2.0 dBi – compact, reliable, ideal for 2.4 GHz WLAN, Wireless DMX, and other wireless systems.

€8.90

Available, delivery time: 1-3 days

Product number: K40834-2.0

Stock: 18

Manufacturer: Graf Lichttechnik

Manufacturer number: K40834-2.0

Product information "RP-SMA Rod Antenna 5cm 2.0dBi Gain right angle 90°"

RP-SMA stub antenna, 5 cm, 2.0 dBi, 90° angled. Compact and sturdy. Perfect for 2.4 GHz Wi-Fi, wireless DMX and other wireless systems. The 90° angle enables space-saving mounting in flat or tight installations.

Key Technical Specifications

Frequency: 2.4 GHz
Gain: 2.0 dBi
Connector: RP-SMA (male), 90° angled
Length: 5 cm
Radiation pattern: omnidirectional
Impedance: 50 Ohm

Connection:	RP-SMA
Frequency Band:	2.4 GHz
Gain:	2.0 dBi
Impedance:	50 Ohm
Length:	5 cm
