What LED voltage is this LED effect generator designed for?

12 to 24V DC with constant voltage. Perfect for common LED strips at 12V or 24V, used in kitchens, furniture or on ceilings – or for the 24V modules from the GKORE CINE Series such as the DEMETER 22W or DEMETER 52W.

How does this LED effect generator differ from the USB-C model (CT0032)?

The input voltage and power. CT0033 runs on 12–24V DC and delivers 4A per channel – around four times the power of the USB-C version (CT0032) with 5V and 2A/channel. If you want to operate larger LED setups or 24V modules, this controller is the right choice.

Can I commission individual effects?

We’d be happy to develop custom effects tailored to your specific needs upon request—such as a specific TV flicker effect, a thunderstorm effect, or visual triggers for VFX shoots. Just get in touch with us

How do I connect the controller?

The dimmer has solder pads instead of connectors. This means that the LED strips and power supply are soldered directly to it. This results in a very stable, long-lasting, and reliable connection—ideal for permanent installations or custom LED setups with limited space.

What does 30kHz PWM Frequency mean for film applications?

Flicker-free light, even in slow motion and at high frame rates. Cameras do not record any visible banding effects, even at short shutter speeds – this is crucial for professional video work.

How do I connect this to 24V LED modules?

Power supply (12–24V DC) to the supply pads, LED module to the output pads of the respective channel. For a 2-channel CCT module such as the DEMETER 22W, each channel (warm white/cool white) is connected to one output, then you can mix the colour temperature steplessly via the potentiometer.

Can I customise the firmware myself?

Yes. The firmware is open source and will be provided on GitHub. With knowledge of C/C++ and embedded development you can implement custom effects. Alternatively we offer custom development for a fee.

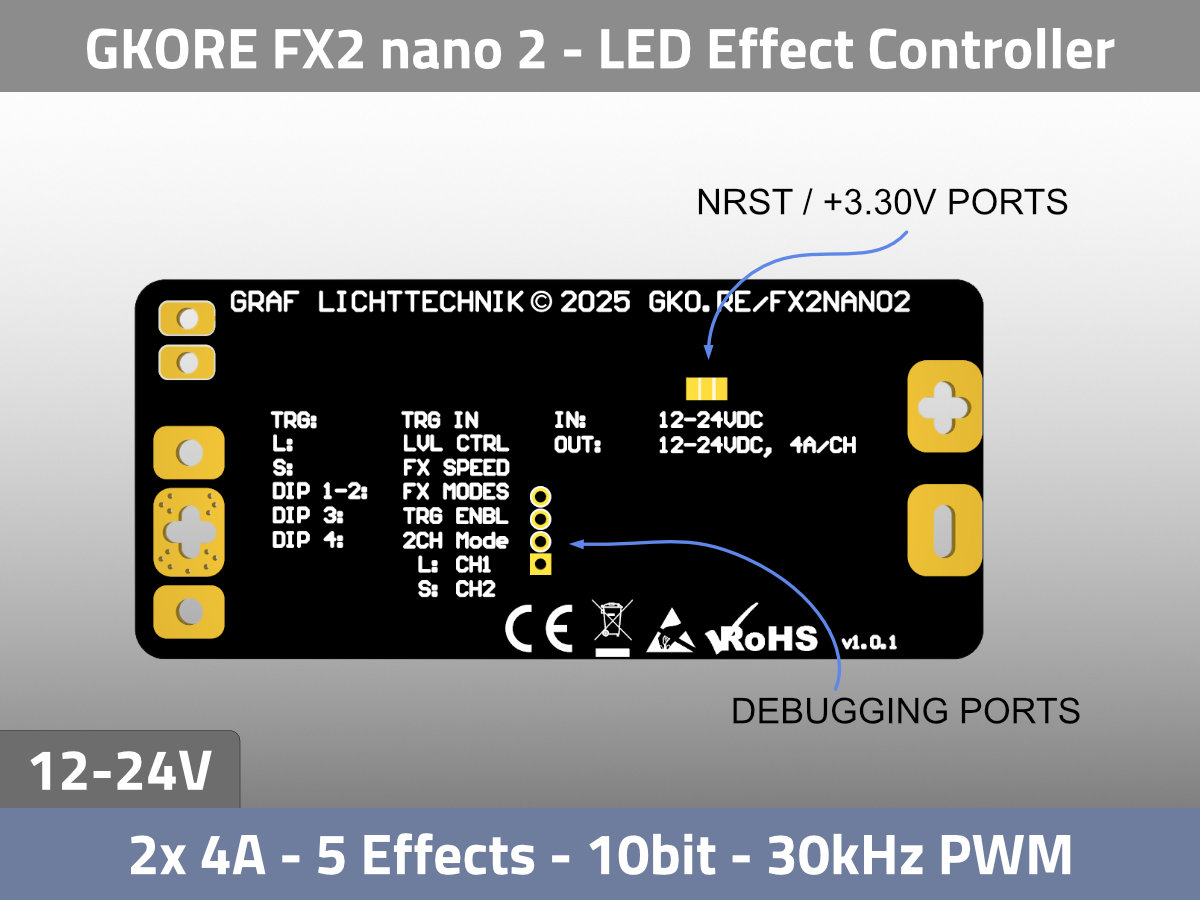

GKORE FX2 nano 2 - 2ch LED Effect Controller 12-24V

Name: GKORE FX2 nano 2 - 2ch LED Effect Controller 12-24V
Brand: Graf Lichttechnik
SKU: CT0033
Price: 79.90 EUR
Availability: InStock

2-channel LED effect generator 12–24 V – flicker-free, 4 A/channel, 30 kHz PWM, 10-bit dimming, built-in effects, open-source firmware.

€79.90

*VAT is calculated automatically at checkout
based on your business or country

Product number: CT0033

Stock: 10

Manufacturer: Graf Lichttechnik

Manufacturer number: CT0033

Product information "GKORE FX2 nano 2 - 2ch LED Effect Controller 12-24V"

12–24 V Version – High-quality lighting effects with our 2-channel LED effect generator.

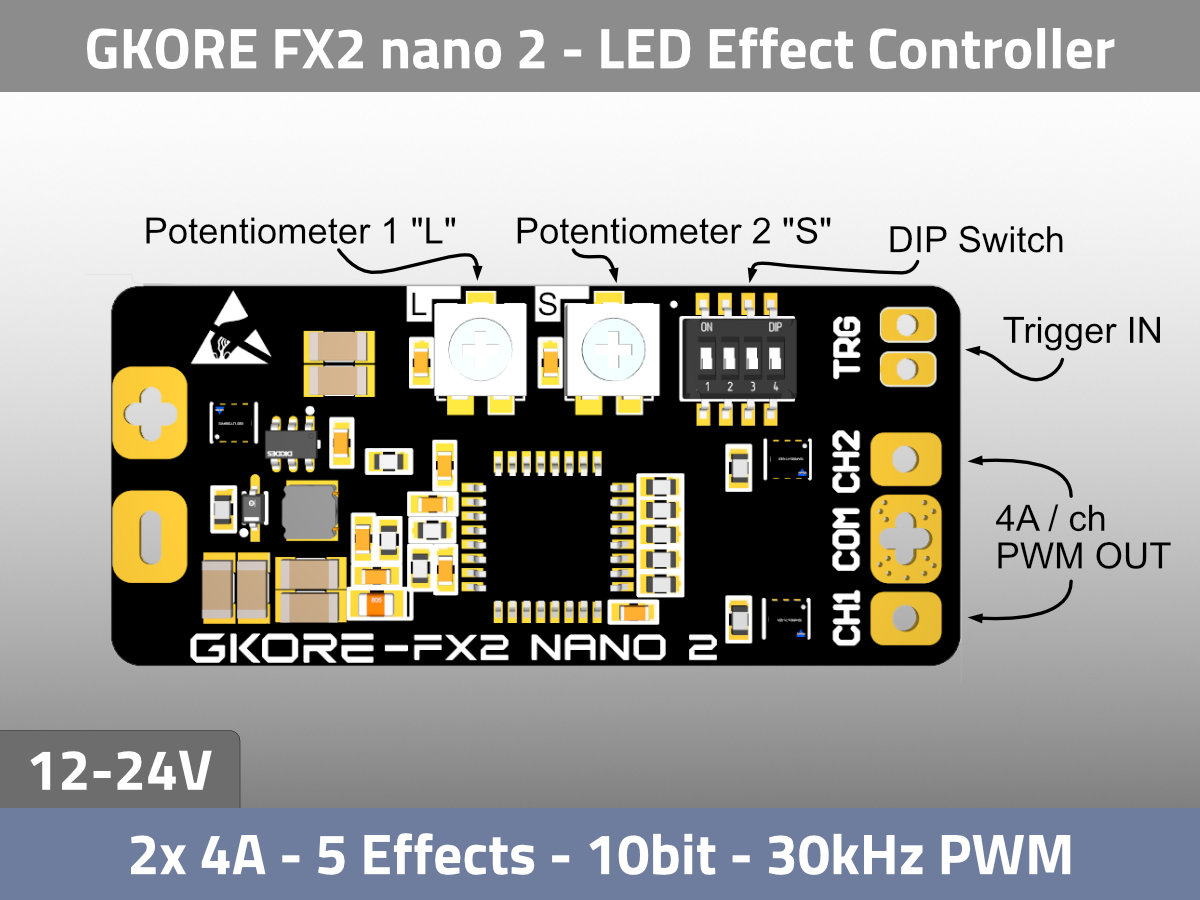

This compact yet powerful controller enables precise, flicker-free control of constant-voltage LED strips and modules, handling up to 4 A per channel. Thanks to a 30 kHz PWM frequency, fine 10-bit dimming resolution, and two integrated potentiometers, lighting effects can be adjusted with ease.

To get you started quickly, various effects are pre-installed and can be selected directly via the DIP switch. A trigger input is also available, allowing you to activate the LED output on demand—perfect for creative projects and custom applications.

Here are the 5 pre-installed effects and dimming functions:

CCT Dimming
Candle Flicker
Blink 50/50
Fade IN/OUT
2-Channel Dimming

Another highlight: The firmware is open source. This gives you complete freedom to develop and use your own effects. Simply clone or fork the repository on GitHub.

⭐⭐ https://github.com/graflichttechnik/gkore-fx2-nano

We can also create custom effects for you if needed—such as a TV flicker effect or a visual trigger for VFX.
Just get in touch with us.

Technical Highlights at a Glance

Channels: 2 independent PWM outputs
Power: 4 A per channel – up to 96 W total at 24 V
Supply: 12–24 V DC (constant voltage)
Connection: Solder pads – direct wiring
PWM Frequency: 30 kHz – flicker-free for film and video
Dimming Resolution: 10-bit (1024 steps)
Controls: 2 potentiometers + DIP switch for 5 effects
Trigger Input: For external activation
Dimensions: 48 × 21.5 × 4 mm
Firmware: Open source (MIT license)

Typical Applications

Film Sets: TV flicker, candle effects, lightning for 12/24 V lights
Practical Lighting: Integration into larger props and light fixtures
Architectural Lighting: 2-channel CCT mixing for 24 V LED strips
Trade Show & Event Construction: Robust solder connections for permanent installation
Custom Effects: Custom programming available directly from the manufacturer

Connection:	Lötpads
Current:	2x 4A
Firmware:	OpenSource
Height:	4.00 mm
Length:	48.00 mm
PWM Frequency:	30kHz
Resolution:	10 bit
Voltage:	12V - 24V
Voltage Type:	Constant Voltage
Width:	21.50 mm
