Which LEDs is the FX2 nano USB-C designed for?

The controller operates with constant voltage at 5V. It is a perfect match for 5V LED strips and the 5V modules from the GKORE CINE Series, such as the BAR2x3CCT 5V. For 12 or 24V setups, the FX2 nano 2 (CT0033) is the better choice.

How does this LED effect controller differ from the FX1 nano?

The FX1 nano has only one channel with up to 4A. The FX2 nano USB-C has two channels at 2A each – so the same total output, but split across two outputs. If you want to control two independent light sources (e.g. warm white + cool white for CCT mixing), this controller is the right choice.

What does 30kHz PWM frequency mean in practice?

30kHz is far above the frequencies that appear as flickering in camera recordings. You can film in slow motion, work with high frame rates and have no banding artefacts. This is a basic requirement for professional video work.

Can I customise the effects myself?

Yes. The complete firmware is available as open source on GitHub. With embedded development knowledge (C/C++) you can program custom effects, sequences or control logic.

What is the trigger input for?

It allows you to switch the LED output from outside – via button, sensor or microcontroller. Useful e.g. for props that should only light up at the push of a button, or for effects that start at a specific point in the setup.

Are 2A per channel really enough?

For small to medium LED setups yes. A typical 5V LED strip draws 0.5–1A per metre, so 2A is sufficient for several metres of strip or several modules connected in parallel. For larger setups with 12 or 24V and 4A/channel, the FX2 nano 2 (CT0033) is suitable.

Which LED modules are a particularly good match?

The 5V modules of the GKORE CINE Series, especially the BAR2x3 series. You can find an overview in the LED Modules category.

GKORE FX2 nano 2ch LED Effect Controller USB-C

Name: GKORE FX2 nano 2ch LED Effect Controller USB-C
Brand: Graf Lichttechnik
SKU: CT0032
Price: 72.90 EUR
Availability: InStock

Compact 2-channel LED effect generator with 5 V, 30 kHz PWM, and 10-bit dimming. Up to 2 A per channel, 5 effects via DIP switch, open-source firmware for your own LED projects.

€72.90

*VAT is calculated automatically at checkout
based on your business or country

Product number: CT0032

Stock: 9

Manufacturer: Graf Lichttechnik

Manufacturer number: CT0032

Product information "GKORE FX2 nano 2ch LED Effect Controller USB-C"

High-quality light effects with our 2-channel LED effect generator!

This small and powerful 5V-based controller gives you the ability to control constant-voltage LED strips and LED modules with up to 2 A per channel flicker-free and precisely – thanks to the 30 kHz PWM, high 10-bit dimming resolution and the two potentiometers. Ideal for smaller LED applications, our generator already includes pre-installed effects that can be easily selected via the DIP switch. The additional trigger input activates the LED output when needed.

5 pre-installed effects and dimming functions:

CCT dimming
Candle flicker
Blink 50/50
Fade IN/OUT
2-channel dimming

And the best part: We provide the firmware as open source.
This means you can create and use your own individual effects.
Simply go to our GitHub page and clone or fork the repository

⭐⭐ https://github.com/graflichttechnik/gkore-fx2-nano

Key Technical Specifications

Channels: 2 independent PWM outputs
Output: 2 A per channel, max. 20 W total
Power supply: USB-C, 5 V DC
PWM frequency: 30 kHz – flicker-free for video recordings
Dimming resolution: 10-bit (1024 steps)

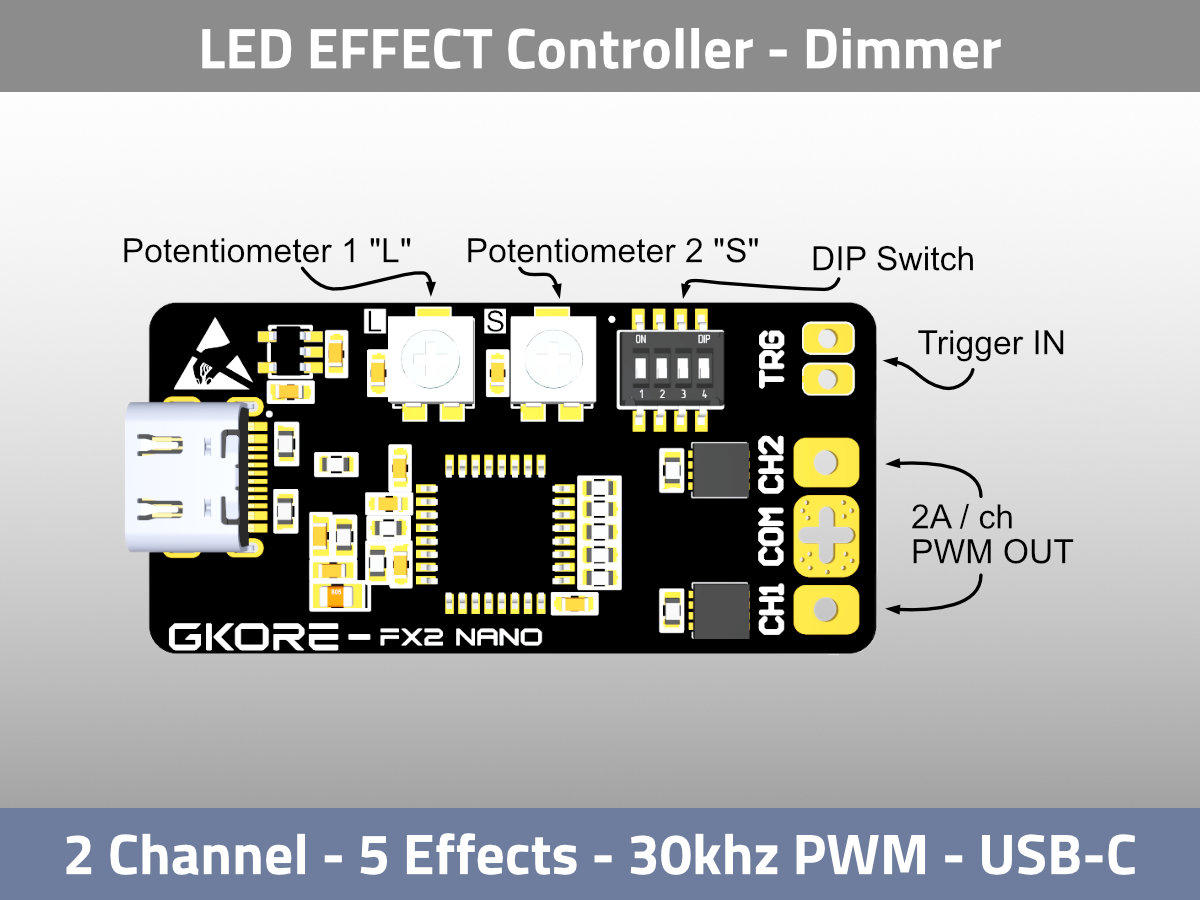

Controls: 2 potentiometers + DIP switch for 5 effects
Trigger input: for external activation

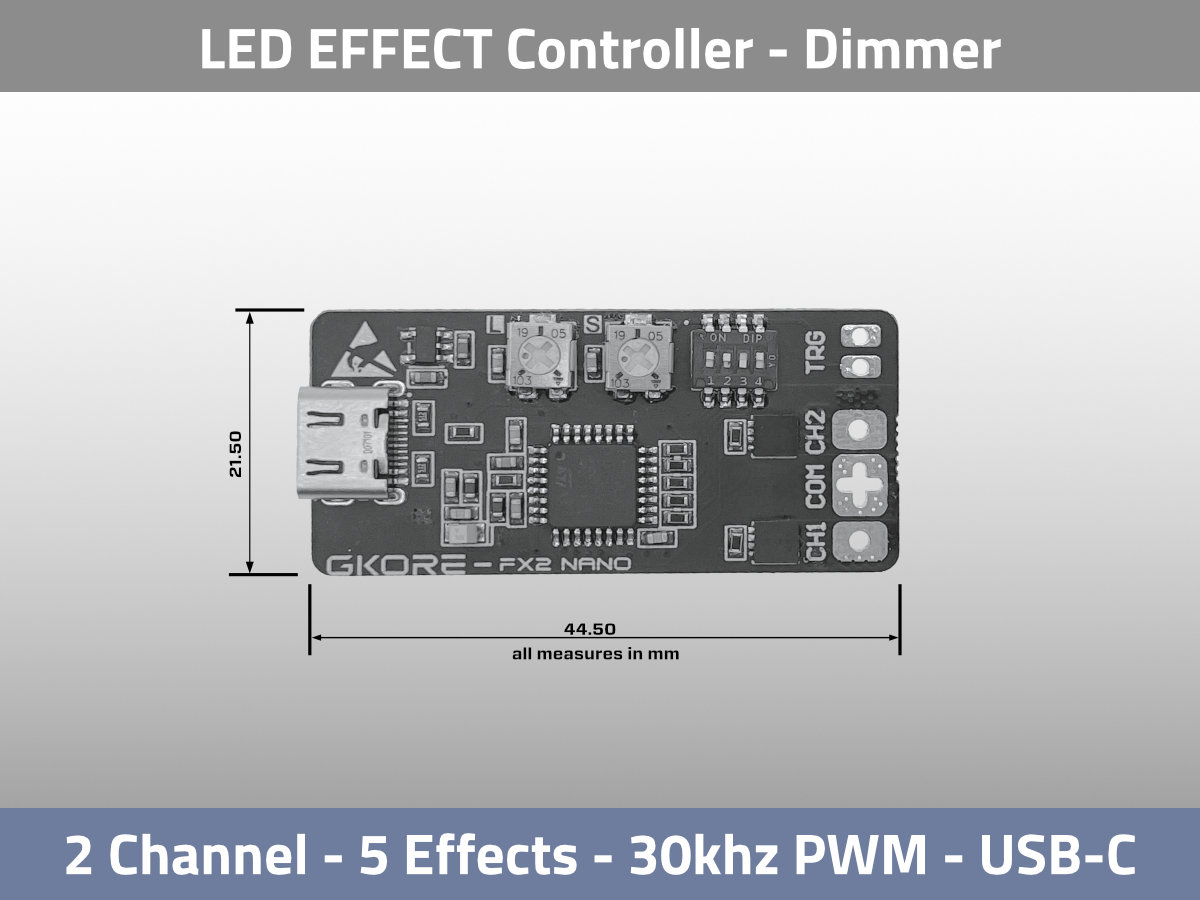

Dimensions: 44.5 × 21.5 × 4 mm
Firmware: open source on GitHub

Typical Applications

CCT mixing: steplessly mix warm white + cool white on 2 channels
Film practical lighting: candles, flashes and fades in 2-colour fixtures
Photo studio: flicker-free dimming and stepless colour temperature
DIY fixtures: compact all-in-one solution for 2-channel setups
Interactive installations: trigger input for external sensors

Connection:	USB-C
Current:	2x 2A
Firmware:	OpenSource
Height:	4.00 mm
Length:	44.50 mm
PWM Frequency:	30kHz
Power:	max. 20W
Resolution:	10 bit
Voltage:	5V
Width:	21.50 mm
