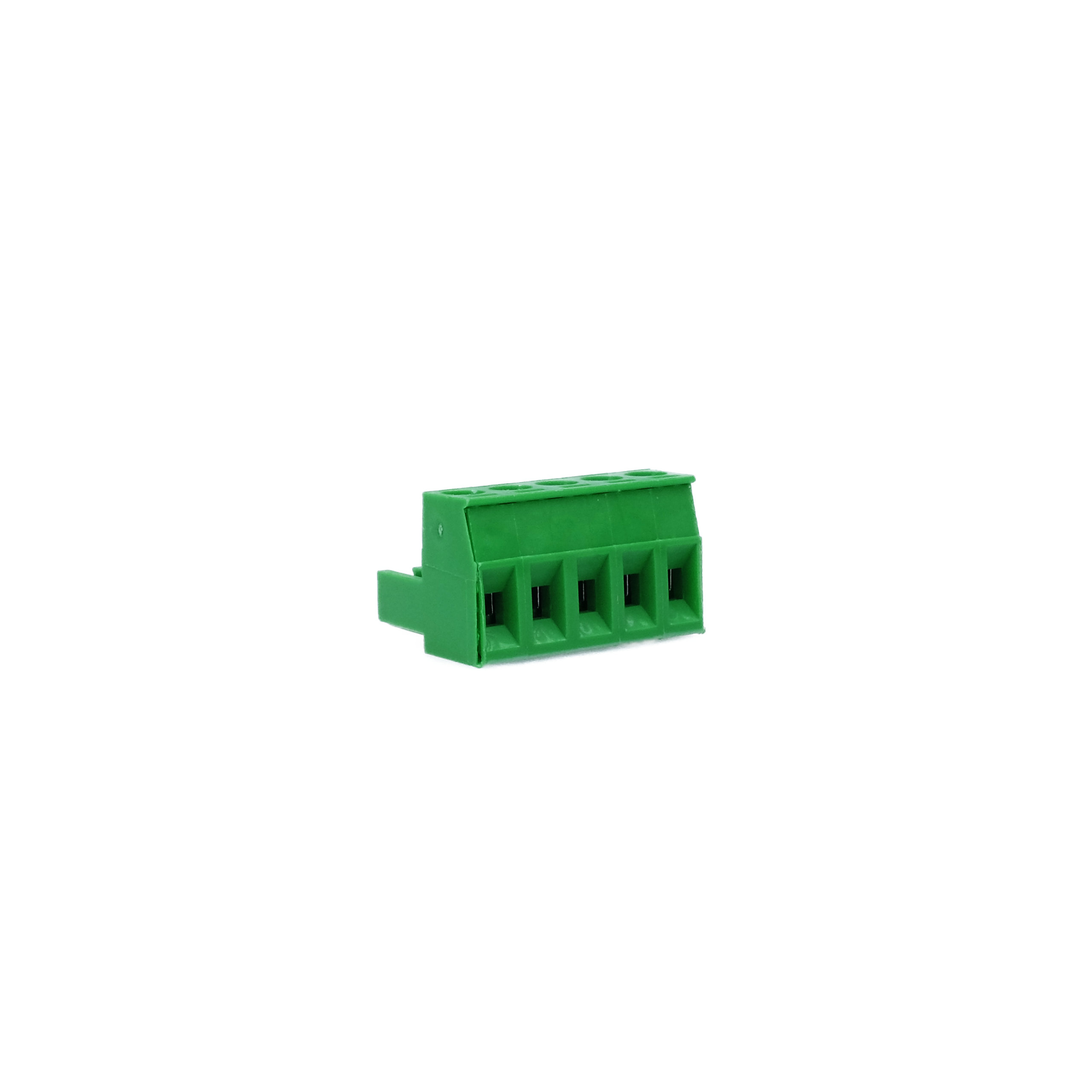

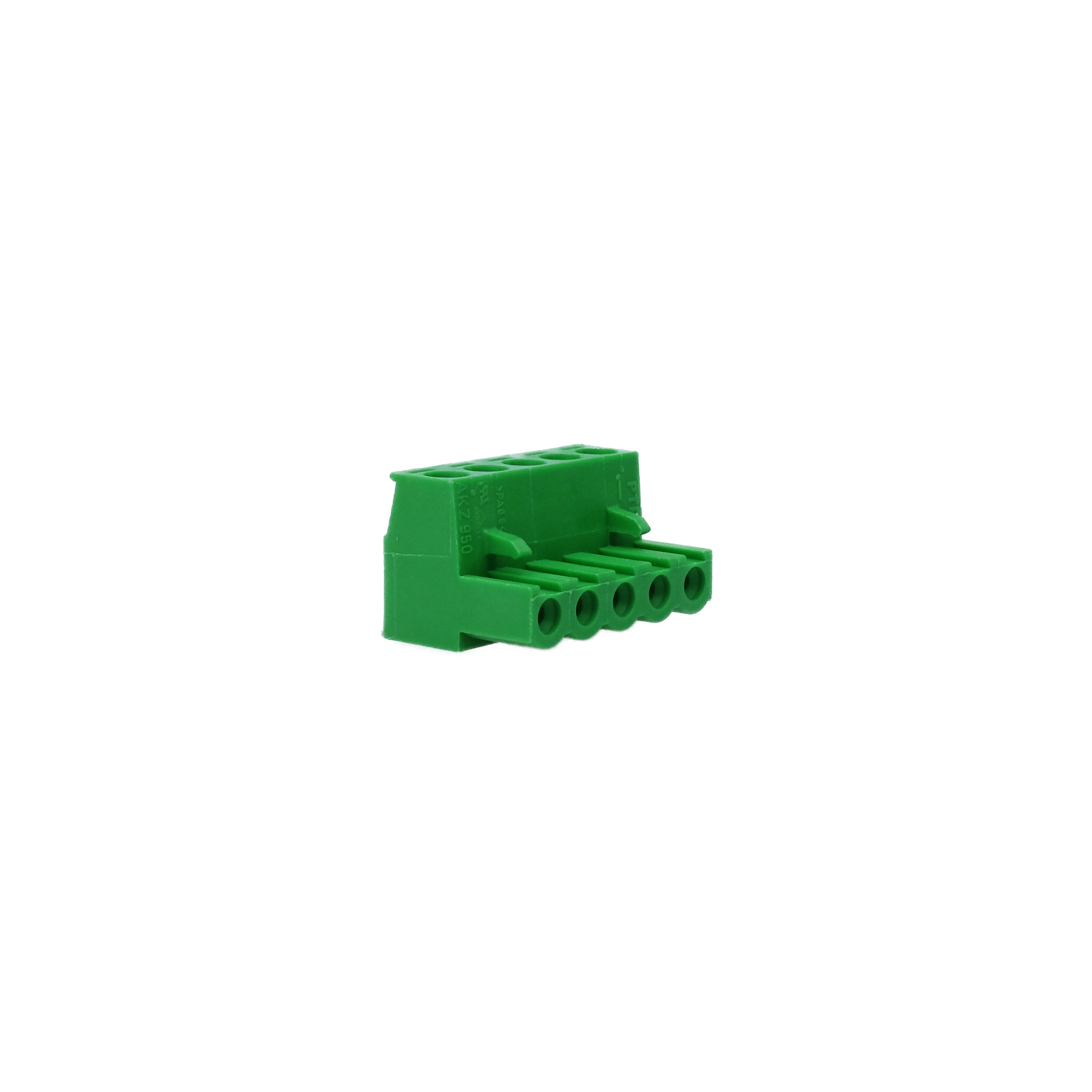

PTR Terminal Block AKZ950 5pin pitch 5.08 50950050021E
€2.20
Available, delivery time: 2-5 days
Product information "PTR Terminal Block AKZ950 5pin pitch 5.08 50950050021E"
PTR Hartmann AKZ950 – 5-pole, 5.08 mm pitch, female cable socket. Type 50950050021E. Cable-mount, screw connection, 15 A, up to 2.5 mm². Female cable socket for 5-wire connections in the AKZ950 system.
Key Technical Specifications
- Manufacturer: PTR Hartmann
- Series: AKZ950
- Poles: 5
- Pitch: 5.08 mm
- Type: Cable socket (female)
- Current rating: 15 A
- Wire cross-section: up to 2.5 mm²
Frequently Asked Questions
For RGBW connections using the common anode principle: 4 colour channels (R, G, B, W) + 1× shared positive rail = 5 pins. As a releasable field connection between LED controller and RGBW LED modules.
A dedicated male 5-pole AKZ950 variant is not currently listed in the shop. For a complete plug-socket connection, the 6-pole series may be used: CN950-6-5.08 and CN950-6I-5.08.
| Cable cross-section: | 2.5 mm² |
|---|---|
| Connection: | Schraubanschluss |
| Connection Type: | Buchse |
| Current: | 15A |
| Fastening: | Kabelmontage |
| Height: | 15 mm |
| Length: | 17.3. mm |
| Number of pins: | 5 |
| Pitch: | 5.08 mm |
| Width: | 25.4 mm |
