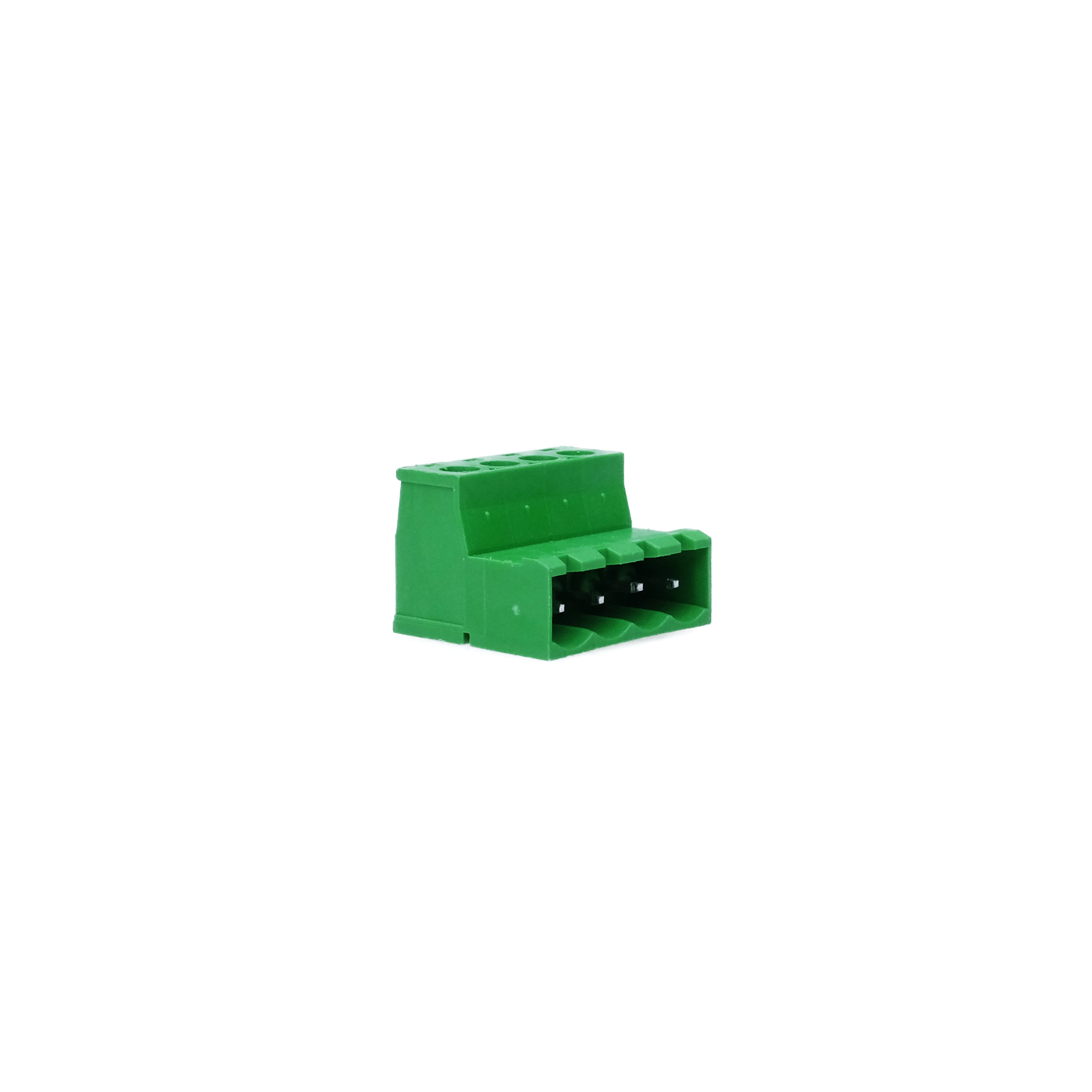

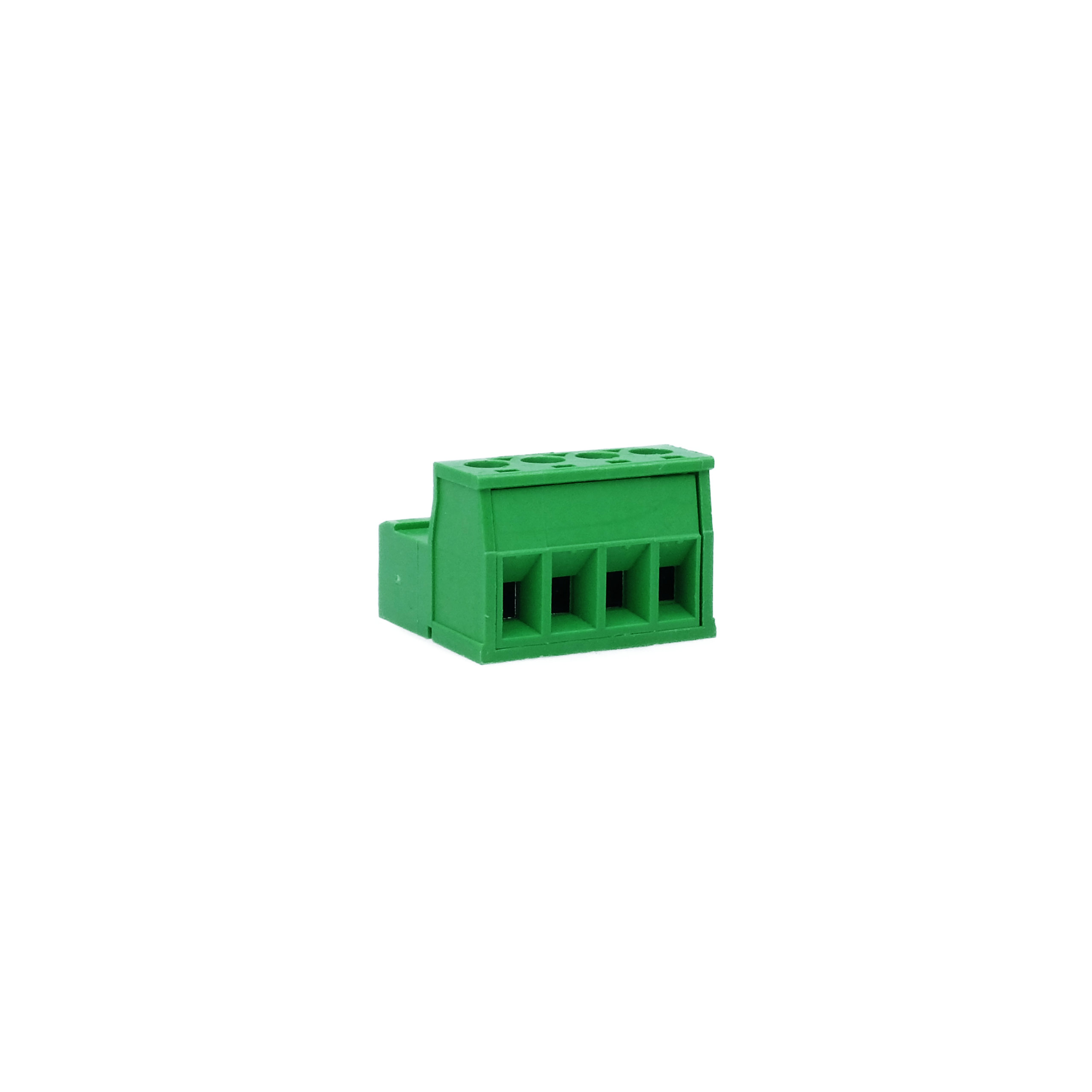

PTR Terminal Block AKZ950 4pin pitch 5.08 50950047028F
Male 4-pin terminal block connector, 5.08 mm pitch for easy and secure PCB connection.
Regular price:
€2.19
Available, delivery time: 2-5 days
Product number:
CN950-4I-5.08
Stock:
44
GTIN/EAN:
2050001583666
Manufacturer:
PTR Hartmann
Manufacturer number:
50950047028F
Description
Product information "PTR Terminal Block AKZ950 4pin pitch 5.08 50950047028F"
PTR Hartmann AKZ950 – 4-pole, 5.08 mm pitch, male cable plug. Type 50950047028F. Cable-mount, screw connection, 15 A, up to 2.5 mm². Male cable plug as mating part for the female AKZ950 socket CN950-4-5.08.
Key Technical Specifications
- Manufacturer: PTR Hartmann
- Series: AKZ950
- Poles: 4
- Pitch: 5.08 mm
- Type: Cable plug (male)
- Current rating: 15 A
- Wire cross-section: up to 2.5 mm²
Frequently Asked Questions
What is 4-pole suitable for in LED systems?
For RGB connections using the common anode principle: 3 colour channels (R, G, B) + 1× shared positive rail = 4 pins. As a releasable field connection between LED controller and RGB modules.
What is the matching mating part?
The female cable socket CN950-4-5.08.
Properties
| Cable cross-section: | 2.5 mm² |
|---|---|
| Connection: | Schraubanschluss |
| Connection Type: | Stift |
| Current: | 10A |
| Fastening: | Kabelmontage |
| Height: | 15 mm |
| Length: | 19.2 mm |
| Number of pins: | 4 |
| Pitch: | 5.08 mm |
| Width: | 21.82 mm |
