PTR Terminal Block AKZ950 3pin pitch 5.08 50950037028F
€1.69
Available, delivery time: 2-5 days
Product information "PTR Terminal Block AKZ950 3pin pitch 5.08 50950037028F"
PTR Hartmann AKZ950 – 3-pole, 5.08 mm pitch, male cable plug. Type 50950037028F. Cable-mount, screw connection, 15 A, up to 2.5 mm². Male cable plug as mating part for the female AKZ950 socket CN950-3-5.08.
Key Technical Specifications
- Manufacturer: PTR Hartmann
- Series: AKZ950
- Poles: 3
- Pitch: 5.08 mm
- Type: Cable plug (male)
- Current rating: 15 A
- Wire cross-section: up to 2.5 mm²
Frequently Asked Questions
CN950-3I-5.08 is the male cable plug with pin contacts. The mating part is the female cable socket CN950-3-5.08. Together they form a pluggable, tool-free releasable 3-wire connection.
For CCT connections (2 colour channels + 1× common anode = 3 pins) – e.g. between power supply and LED controller, or between controller and LED module.
| Cable cross-section: | 2.5 mm² |
|---|---|
| Connection: | Schraubklemme, Stecker |
| Connection Type: | Stecker |
| Current: | 15A |
| Fastening: | Kabelmontage |

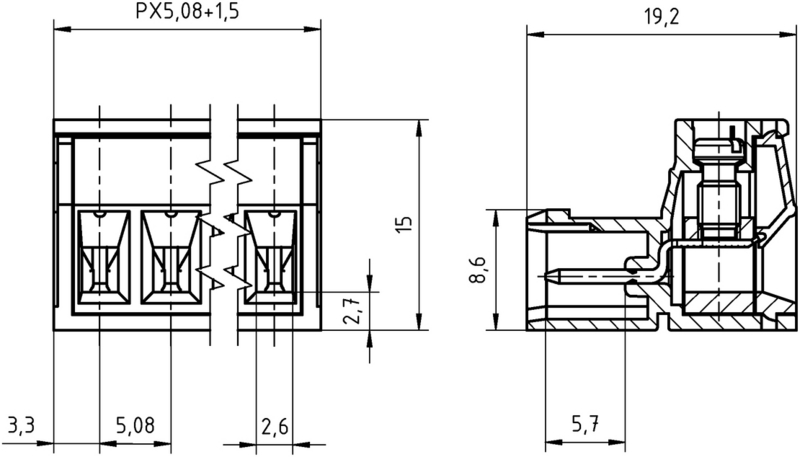

| Height: | 15 mm |
| Length: | 19.20 mm |
| Number of pins: | 3 |
| Pitch: | 5.08 mm |
| Width: | 16.74 mm |
