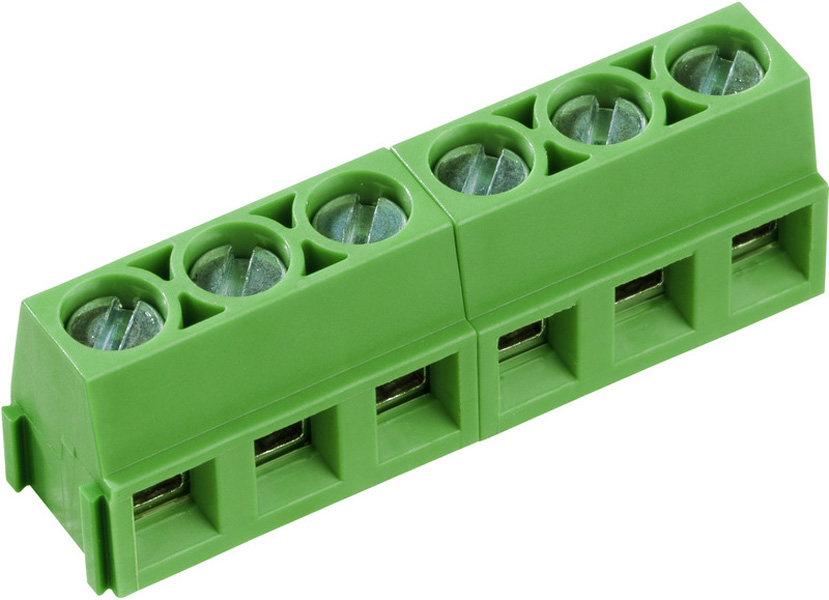

PTR Terminal Block AKZ250 3pin pitch 5.08 50250030001F
€0.71
Available, delivery time: 2-5 days
Product information "PTR Terminal Block AKZ250 3pin pitch 5.08 50250030001F"
PTR Hartmann AKZ250 – 3-pole, 5.08 mm pitch, screw terminal block. Type 50250030001F. PCB-mount. Direct-mount screw terminal without a separate plug. For permanent, tool-releasable wire connections on PCBs.
Key Technical Specifications
- Manufacturer: PTR Hartmann
- Series: AKZ250
- Poles: 3
- Pitch: 5.08 mm
- Type: Screw terminal block, PCB-mount
- Connection: Screw terminal
Frequently Asked Questions
A screw terminal block (like AKZ250) is soldered directly onto the board – the wire is screwed in directly without a separate plug. This is cheaper and more space-saving, but not tool-free releasable. Pluggable systems (MSTB, IC) allow quick disconnection without a screwdriver.
For CCT outputs (2 channels + 1× common anode = 3 pins), 3-wire control signals, or mains terminals (L, N, PE) on LED controller boards.
The AKZ250 series is available in 2–6 poles. Also available in the shop: AKZ350 2-pole (CN350-2-5.08), AKZ602 (3.81 mm) and AKZ950.

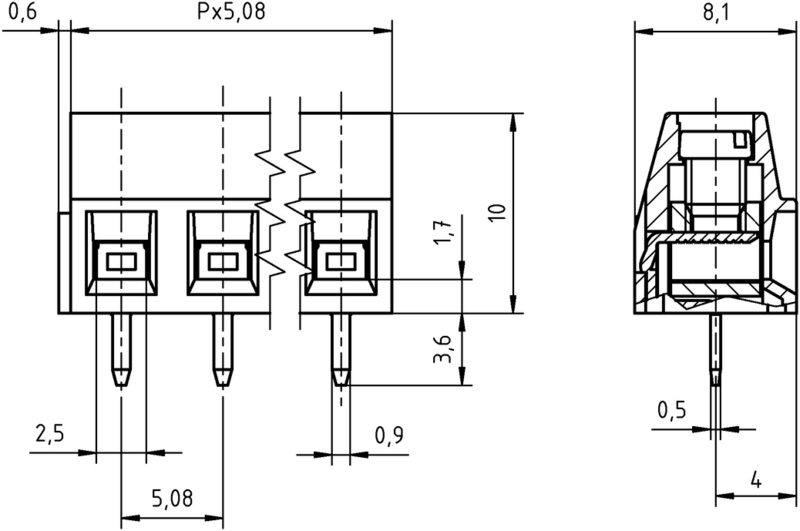

| Cable cross-section: | 1,5 mm² |
|---|---|
| Connection: | Schraubanschluss |
| Connection Type: | Anschlussklemme |
| Current: | 13A |
| Fastening: | Leiterplattenmontage |
| Height: | 10 mm |
| Length: | 8,1 mm |
| Number of pins: | 3 |
| Pitch: | 5,08 mm |
| Width: | 15,24 mm |
