PTR Hartmann
PTR Steckverbinder AKZ602 4pin pitch 3.81 50602040021F
4-pin screw terminal block, 3.81 mm pitch for easy PCB mounting.
Regular price:
€1.33
Available, delivery time: 2-5 days
Product number:
CN602-4-3.81
Stock:
56
GTIN/EAN:
2050000683183
Manufacturer:
PTR Hartmann
Manufacturer number:
50602040021F
Description
Product information "PTR Steckverbinder AKZ602 4pin pitch 3.81 50602040021F"
PTR Hartmann AKZ602 – 4-pole, 3.81 mm pitch, screw terminal block. Type 50602040021F. PCB-mount. Compact 4-pole screw terminal block for space-saving boards with multiple channels.

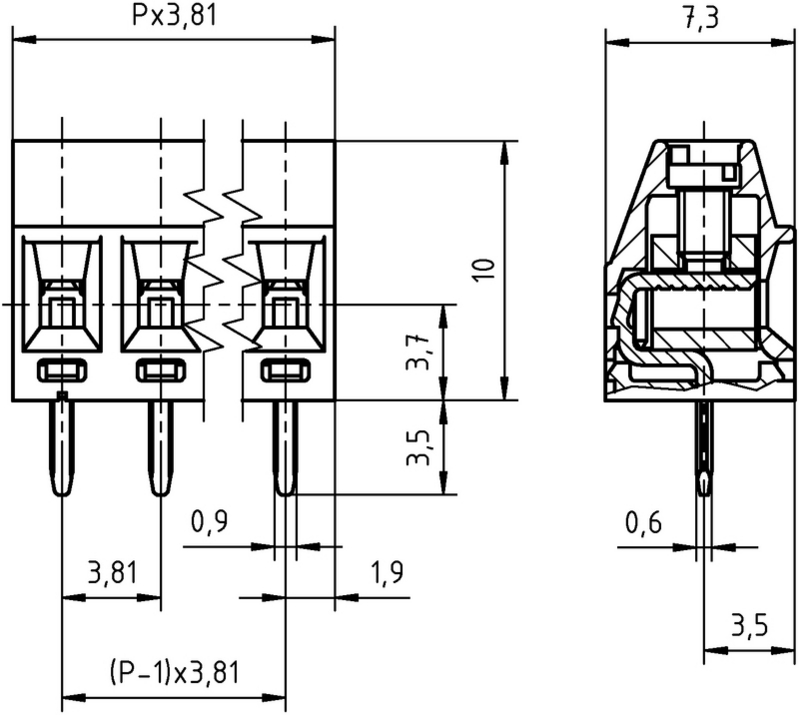

Key Technical Specifications
- Manufacturer: PTR Hartmann
- Series: AKZ602
- Poles: 4
- Pitch: 3.81 mm
- Type: Screw terminal block, PCB-mount
Frequently Asked Questions
What is the 4-pole AKZ602 suitable for in LED projects?
For RGB LED outputs using the common anode principle: 3 colour channels (R, G, B) + 1× shared positive rail = 4 pins. Also for CCT outputs with a reinforced positive rail (2 channels + 2× positive to reduce voltage drop) or 4-wire control signals.
What other pole counts of the AKZ602 are available?
Properties
| Cable cross-section: | 1.5 mm² |
|---|---|
| Connection: | Schraubanschluss |
| Connection Type: | Anschlussklemme |
| Current: | 10A |
| Fastening: | Leiterplattenmontage |
| Height: | 10 mm |
| Length: | 7.3 mm |
| Number of pins: | 4 |
| Pitch: | 3.81 mm |
| Width: | 15.24 mm |
