What is the difference between ICV and MSTBVA?

Both are PCB headers for board-mount at 5.08mm pitch. ICV is the more compact, lower-cost variant. MSTBVA is more robust for industrial applications with higher demands. Both are compatible with the matching cable plugs.

What is a 3-pole connection suitable for?

For CCT connections (2 channels + 1× common anode = 3 pins), power supply with protective earth (L, N, PE), or 3-wire control signal terminals.

Phoenix Contact

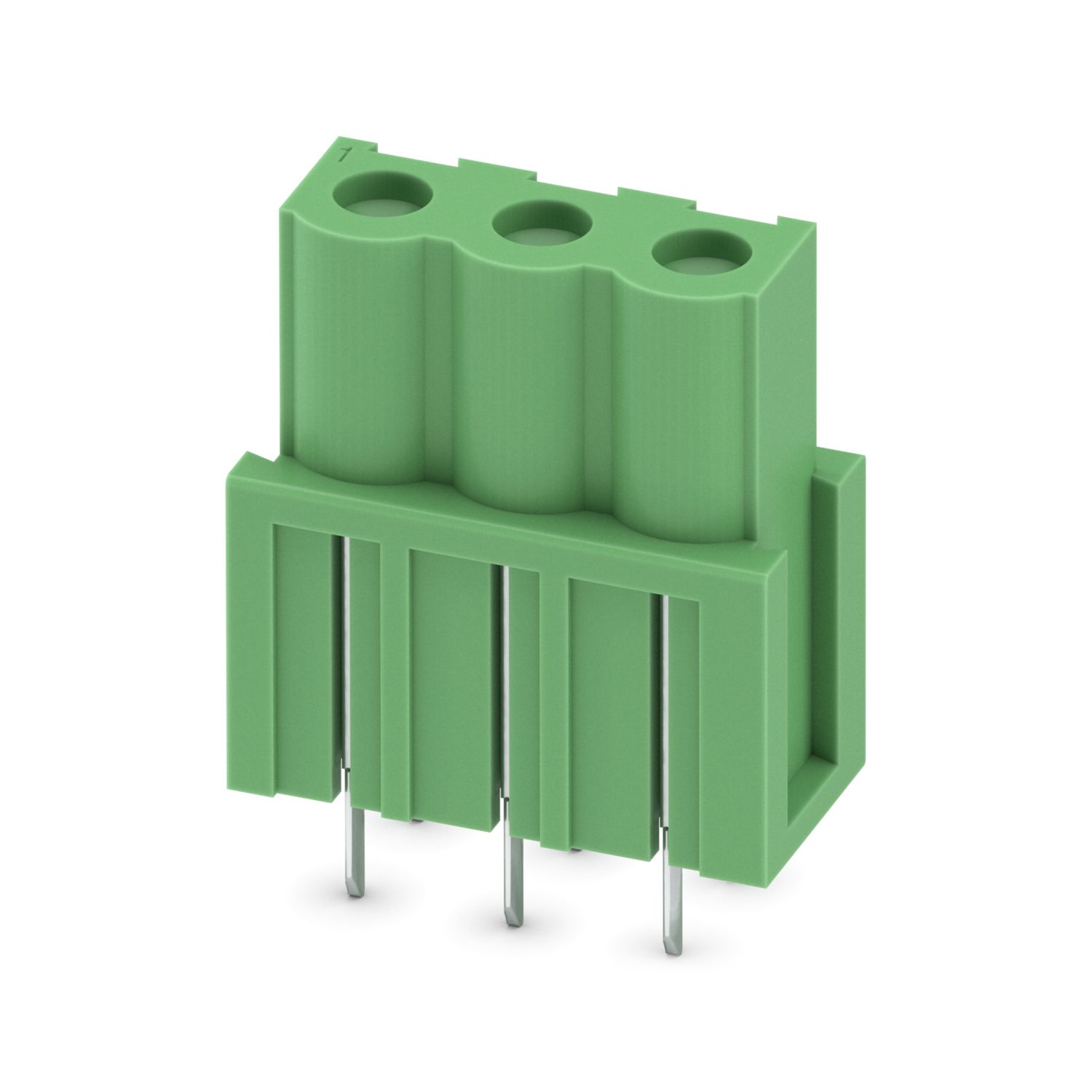

Phoenix Contact Connector ICV 2.5/ 3-G-5.08 3 pin 1785955

Name: Phoenix Contact Connector ICV 2.5/ 3-G-5.08 3 pin 1785955
Brand: Phoenix Contact
SKU: CN0802-3m
Price: 1.55 EUR
Availability: InStock

3-pin ICV connector for versatile PCB connections.

€1.55

Available, delivery time: 2-5 days

Product number: CN0802-3m

Stock: 71

GTIN/EAN: 4017918042103

Manufacturer: Phoenix Contact

Manufacturer number: 1785955

Product information "Phoenix Contact Connector ICV 2.5/ 3-G-5.08 3 pin 1785955"

Phoenix Contact ICV 2,5/3-G-5,08 – 3-pole, 5.08 mm pitch, PCB header. Order no. 1785955. PCB-mount, wave soldering. Board-side mating header for pluggable connections with Phoenix Contact IC/MSTB series plugs.

Key Technical Specifications

Poles: 3
Pitch: 5.08 mm
Type: PCB header, board-mount
Connection: Wave soldering

Cable cross-section:	2.5 mm²
Connection:	Wellenlöten
Connection Type:	Stift
Current:	12A
Height:	18.9 mm
Length:	10.2 mm
Number of pins:	3
Pitch:	5.08 mm
Width:	17.24 mm
