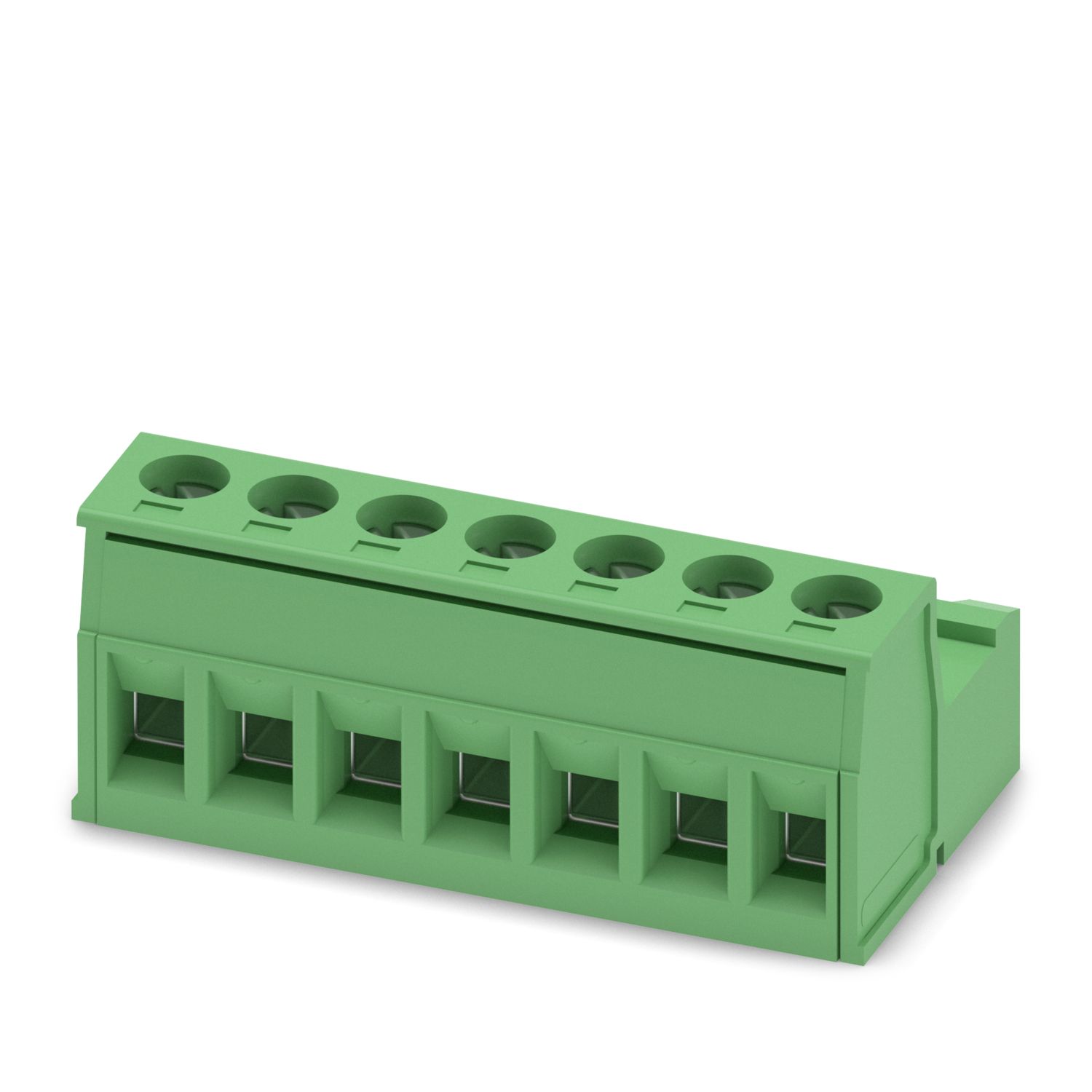

Phoenix Contact Connector IC 2.5/ 7-ST-5.08 7 pin 1786226
Phoenix Contact MSTB 3-pin female connector 5.08 mm pitch. Safe and durable for PCB use.
Regular price:
€8.06
Available, delivery time: 2-5 days
Product number:
CN0800-7m
Stock:
4
GTIN/EAN:
4017918042370
Manufacturer:
Phoenix Contact
Manufacturer number:
1786226
Description
Product information "Phoenix Contact Connector IC 2.5/ 7-ST-5.08 7 pin 1786226"
Phoenix Contact IC 2,5/7-ST-5,08 – 7-pole, 5.08 mm pitch, male. Order no. 1786226. Cable-mount, screw connection. Pluggable cable connector for complex multi-channel connections on PCBs.
Key Technical Specifications
- Poles: 7
- Pitch: 5.08 mm
- Type: Plug (male), cable-mount
Frequently Asked Questions
What do I need a 7-pole PCB connector for?
For boards with many channels – e.g. RGBCCT LED controllers with 5 PWM outputs plus 2 supply lines, or boards with multiple independent dimmer channels.
Is this connector available with fewer poles?
Yes. Available in the shop: 2-pole as CN0800-2m.
Properties
| Cable cross-section: | 2.5 mm² |
|---|---|
| Connection: | Schraubanschluss |
| Connection Type: | Stift |
| Current: | 12A |
| Height: | 15 mm |
| Length: | 19.2 mm |
| Number of pins: | 7 |
| Pitch: | 5.08 mm |
| Width: | 37.06 mm |
