What is the difference between IC and MSTB series at Phoenix Contact?

Both are variants of the Classic COMBICON MSTB series with 5.08mm pitch. IC is more compact and lighter; MSTB is more robust for higher currents. For LED controllers and currents up to 12A, the IC series is well suited.

What applications is 2-pole suitable for?

For simple 2-wire connections: supply voltage (+ and −), single-colour LED loads, or as output terminal of a simple dimmer.

Is this connector available with more poles?

Yes. Available in the shop: 7-pole as CN0800-7m.

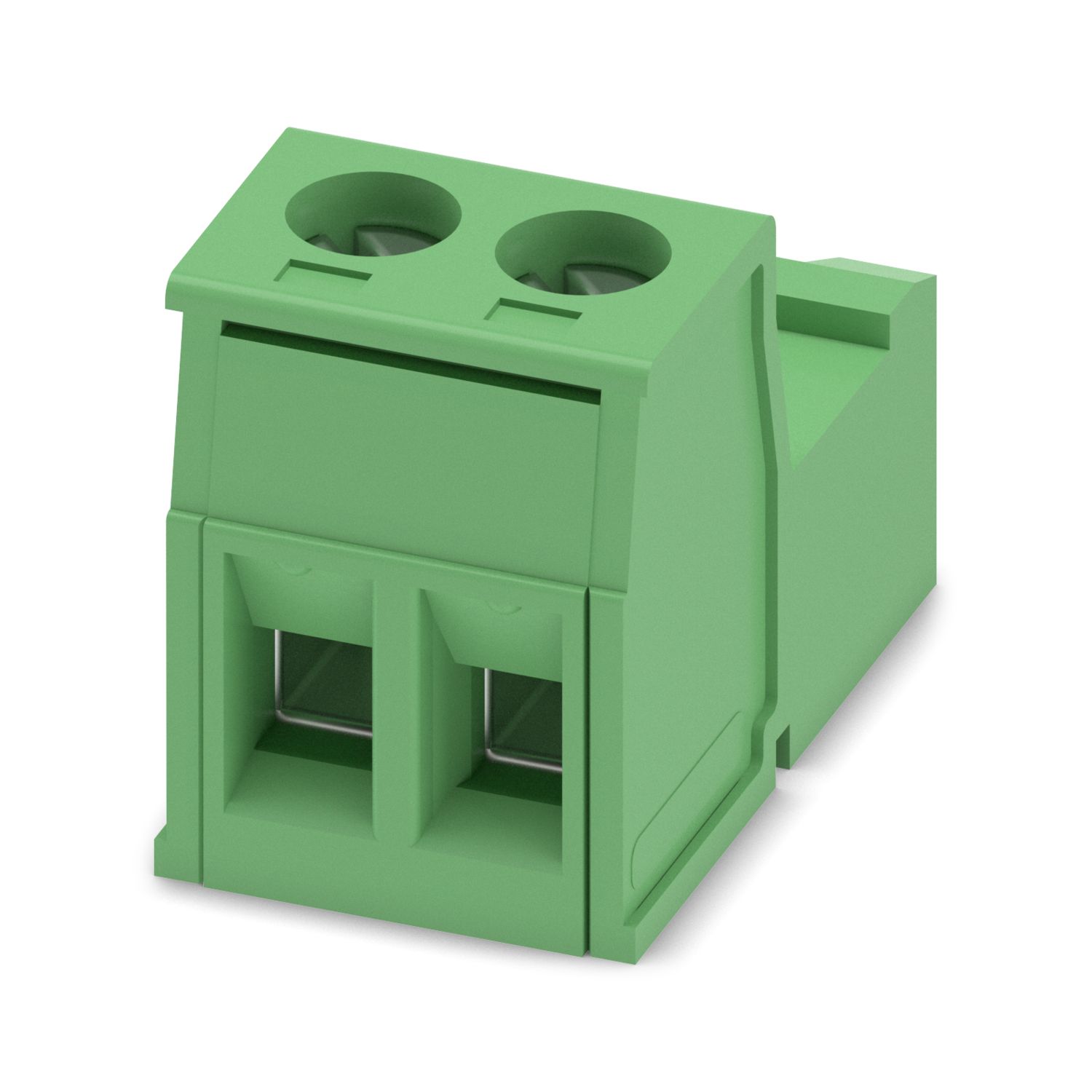

Phoenix Contact Connector IC 2.5/ 2-ST-5.08 2 pin 1786174 — Rear View

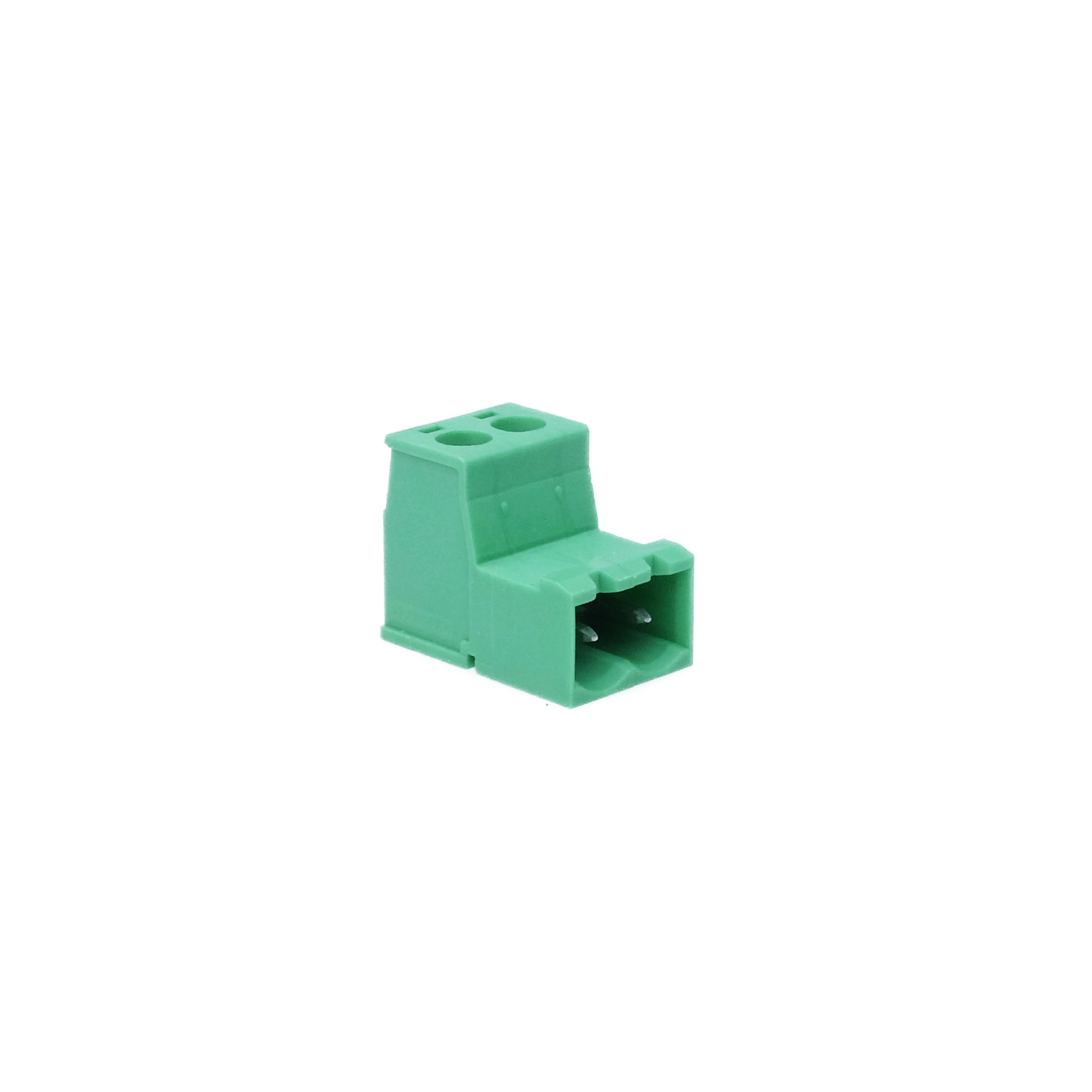

Phoenix Contact Connector IC 2.5/ 2-ST-5.08 2 pin 1786174 — Front View

Phoenix Contact

Phoenix Contact Connector IC 2.5/ 2-ST-5.08 2 pin 1786174

Name: Phoenix Contact Connector IC 2.5/ 2-ST-5.08 2 pin 1786174
Brand: Phoenix Contact
SKU: CN0800-2m
Price: 3.45 EUR
Availability: InStock

2-pin Phoenix Contact IC connector for flexible PCB applications.

€3.45

Available, delivery time: 2-5 days

Product number: CN0800-2m

Stock: 14

GTIN/EAN: 4017918042325

Manufacturer: Phoenix Contact

Manufacturer number: 1786174

Product information "Phoenix Contact Connector IC 2.5/ 2-ST-5.08 2 pin 1786174"

Phoenix Contact IC 2,5/2-ST-5,08 – 2-pole, 5.08 mm pitch, cable plug (pin). Order no. 1786174. Classic COMBICON MSTB series. Screw connection, 12 A, up to 2.5 mm², 320 V. Pluggable cable connector for PCB connections in electronics projects.

Key Technical Specifications

Manufacturer: Phoenix Contact
Series: IC 2.5 / Classic COMBICON MSTB
Poles: 2
Pitch: 5.08 mm
Type: Pin (male), cable-mount
Current rating: 12 A
Wire cross-section: 0.2–2.5 mm²
Voltage: up to 320 V

Cable cross-section:	2.5 mm²
Connection:	Schraubanschluss
Connection Type:	Stift
Current:	12A
Height:	15 mm
Length:	19.2 mm
Number of pins:	2
Pitch:	5.08 mm
Width:	11.66 mm
