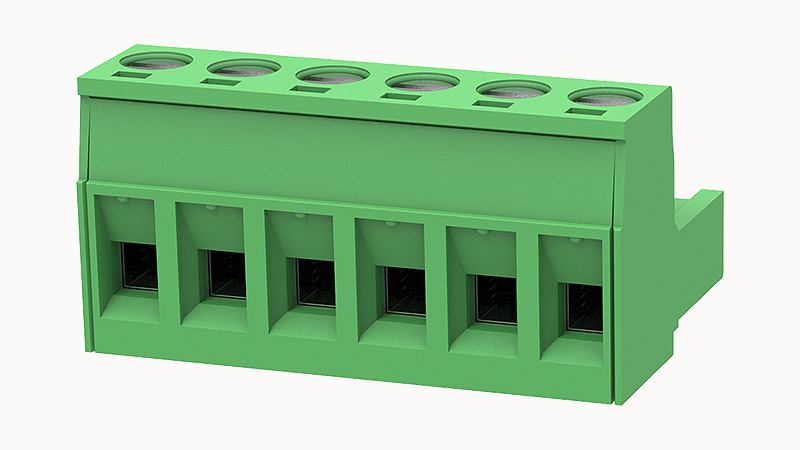

DEGSON Terminal Block 6 pol pitch 5.08 2EDGK-5.08-06P-14-1000AH
€1.64
Available, delivery time: 2-5 days
Product information "DEGSON Terminal Block 6 pol pitch 5.08 2EDGK-5.08-06P-14-1000AH"
DEGSON 2EDGK-5.08-06P-14 – cable socket, 5.08 mm pitch, 15 A, 2.5 mm². Female cable socket with screw connection. For pluggable, releasable connections in LED controllers, power supplies and industrial electronics. Compatible with DEGSON PCB connectors of the 2EDG series.
Key Technical Specifications
- Manufacturer: DEGSON
- Type: 2EDGK-5.08-06P-14
- Pitch: 5.08 mm
- Type: Socket (female), cable-mount
- Connection: Screw terminal
- Current rating: 15 A
- Wire cross-section: up to 2.5 mm²
Frequently Asked Questions
Both are quality PCB terminal system manufacturers. DEGSON often offers a more affordable alternative with comparable technical specifications. The DEGSON 2EDG system is compatible with many mating connectors at 5.08 mm pitch.
As a releasable connection between LED controller output and LED load – e.g. at GKORE modules or between power supply and dimmer board. The advantage over a direct screw terminal block: the connection can be plugged and unplugged without tools.
| Cable cross-section: | 2.5 mm² |
|---|---|
| Connection: | Schraubanschluss |
| Connection Type: | Buchse |
| Current: | 15A |
| Fastening: | Kabelmontage |
| Height: | 15 mm |
| Length: | 17.3. mm |
| Number of pins: | 3 |
| Pitch: | 5.08 mm |
| Width: | 15.24 mm |
