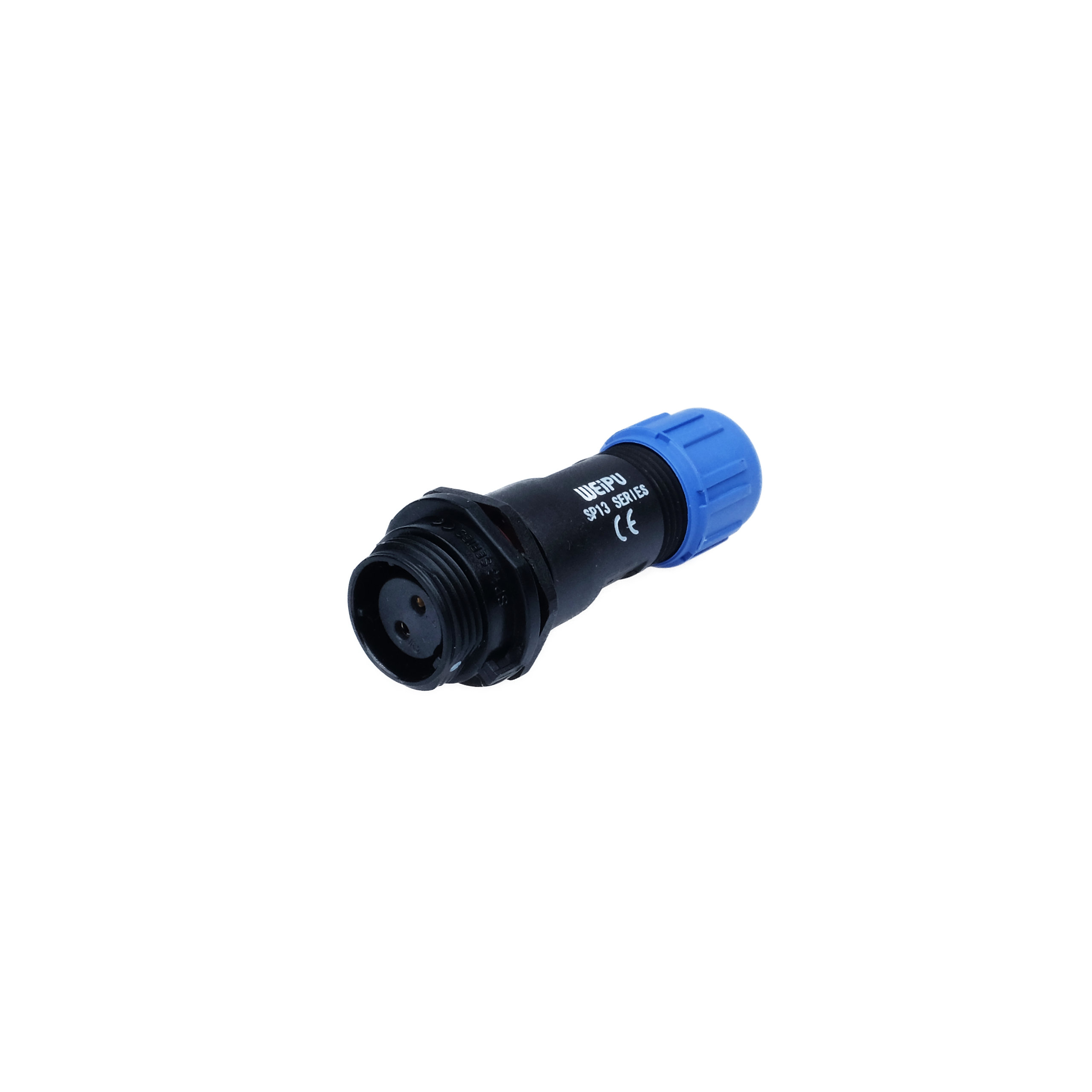

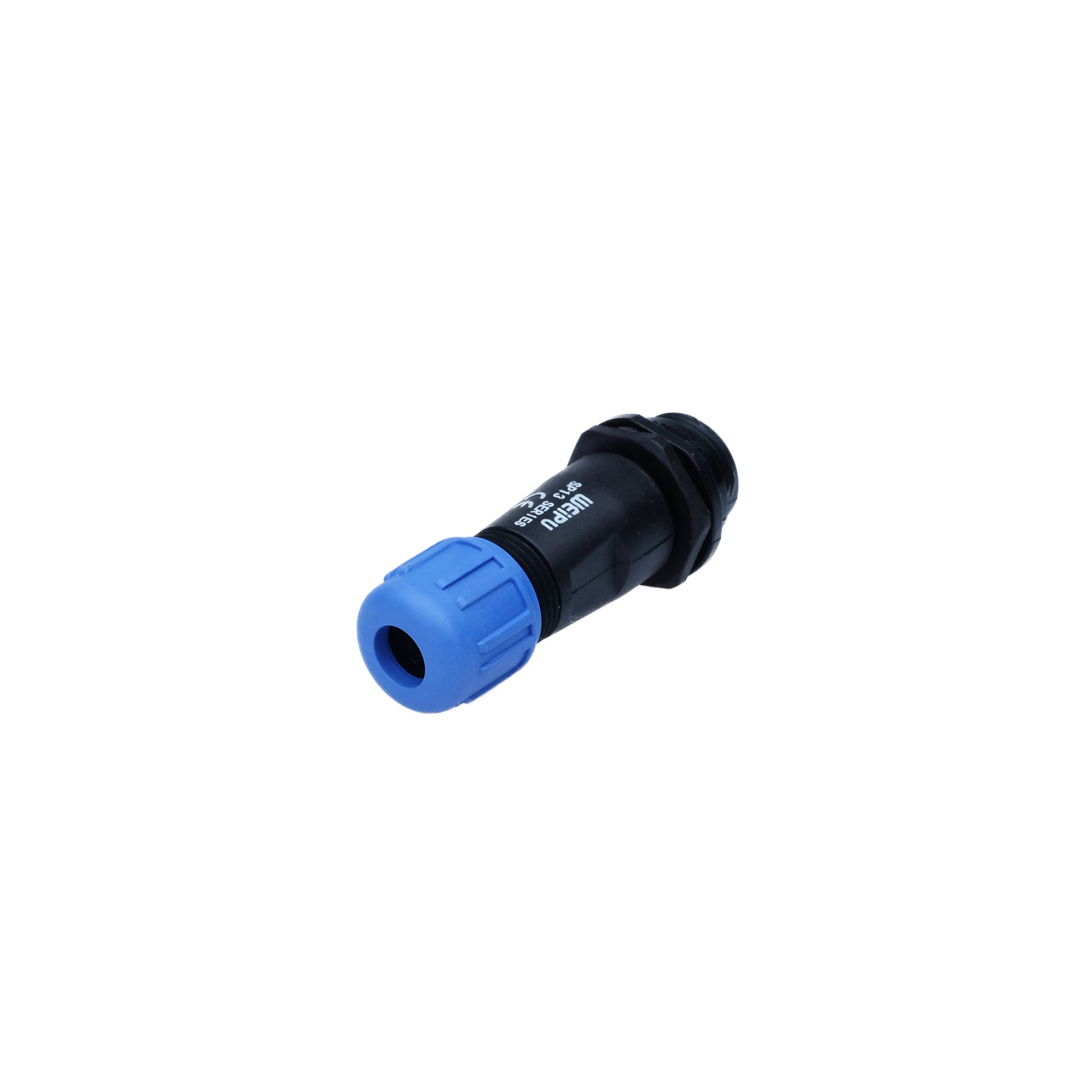

WEIPU Connector SP1311/S2IN 2pin IP68 Waterproof Female
€7.62
Available, delivery time: 2-5 days
Product information "WEIPU Connector SP1311/S2IN 2pin IP68 Waterproof Female"
The round plug-in connector series SP13 with screw locking provide for a compact and secure connection when a degree of sealing against the environment is required.
The IP68 protection class makes the Weipu series permanently waterproof (up to a water depth of 1m).
Frequently Asked Questions
The SP1310 (CNSP1310) has pin contacts (male/Pin). The SP1311 is the socket with socket contacts (female/Socket). Both are designed for cable mounting – for a complete, waterproof connection between two cables you always need plug + socket.
IP68 means permanent protection against water ingress even when submerged to 1 m depth. The highest protection class for outdoor and wet-area use.
For cable-to-cable connections: typically the socket (SP1311, female) is on the side carrying voltage or leading into a fixture. The plug (SP1310, male) is on the power supply or feed side. This way open pin contacts are de-energised when disconnected.
Outdoor LED systems, stage and event, industrial installations, garden and architectural lighting – wherever a secure, waterproof 2-pin connection is needed.
| Cable cross-section: | 2 mm² |
|---|---|
| Connection: | Loeten |
| Connection Type: | Stecker |
| Current: | 13A |
| Degree of protection: | wasserdicht |
| Height: | 20 mm |
| IP Rating: | IP68 |
| Length: | 48 mm |
| Number of pins: | 2 |
| Width: | 20 mm |
