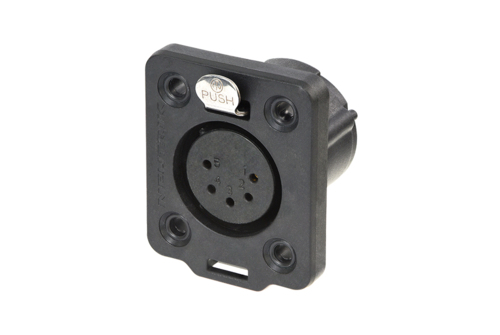

NEUTRIK XLR5 NC5FDX-TOP Panel Mount Female IP65 black
€8.90
Available, delivery time: 2-5 days
Product information "NEUTRIK XLR5 NC5FDX-TOP Panel Mount Female IP65 black"
Frequently Asked Questions
DMX512 is officially specified for 5-pin XLR connectors. The 5 pins are: Pin 1 shield/earth, Pin 2 Data 1−, Pin 3 Data 1+, Pins 4 and 5 for an optional second universe. Even though 3-pin XLR connectors are often used in practice, XLR5 is the correct standard.
IP65 means complete protection against dust and protection against water jets from any direction. This makes this socket suitable for outdoor installations, mobile stage setups and damp environments – unlike standard panel sockets without IP protection.
The matching cable connector is the NC5MXX (CNNC5MXX). For connections between two socket ends use the NA5MM adapter (CNNA5MM).
| Cable cross-section: | 1 mm² |
|---|---|
| Connection: | Loeten |
| Connection Type: | Buchse |
| Current: | 7.5 A pro Kontakt |
| Fastening: | Chassismontage |
| Height: | 35,4 mm |
| IP Rating: | IP65 |
| Length: | 30,8 mm |
| Number of pins: | 5 |
| Width: | 30,4 mm |
