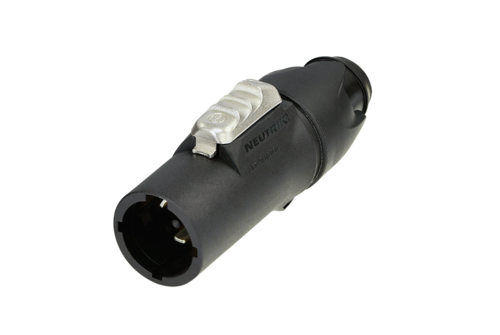

NEUTRIK NAC3MX-W-TOP powerCON TRUE1 Male
€8.79
Available, delivery time: 2-5 days
Product information "NEUTRIK NAC3MX-W-TOP powerCON TRUE1 Male"
Frequently Asked Questions
powerCON TRUE1 is the newer generation and the only system that can be connected and disconnected under load (hot-plug). The older powerCON (blue/grey) may only be connected when de-energised. For new installations TRUE1 is the recommended standard.
With all counterparts of the NEUTRIK powerCON TRUE1 system (panel socket NAC3MPX or similar). Not compatible with the older powerCON system (blue/grey).
Wherever mains voltage must be connected reliably, with locking and safely – stage technology, spotlights, dimmer racks, LED controllers, mobile power distribution.
The NAC3MX-W-TOP is designed for various cable cross-sections. Please check the datasheet for permissible cable diameters and cross-sections.
| Cable cross-section: | 2.5 mm² |
|---|---|
| Connection: | Schraubanschluss |
| Connection Type: | Stift |
| Current: | 16A |
| Fastening: | Kabelmontage |
| Height: | 26.5 mm |
| IP Rating: | IP65 |
| Length: | 80 mm |
| Number of pins: | 2 + PE |
| Width: | 26.5 mm |
