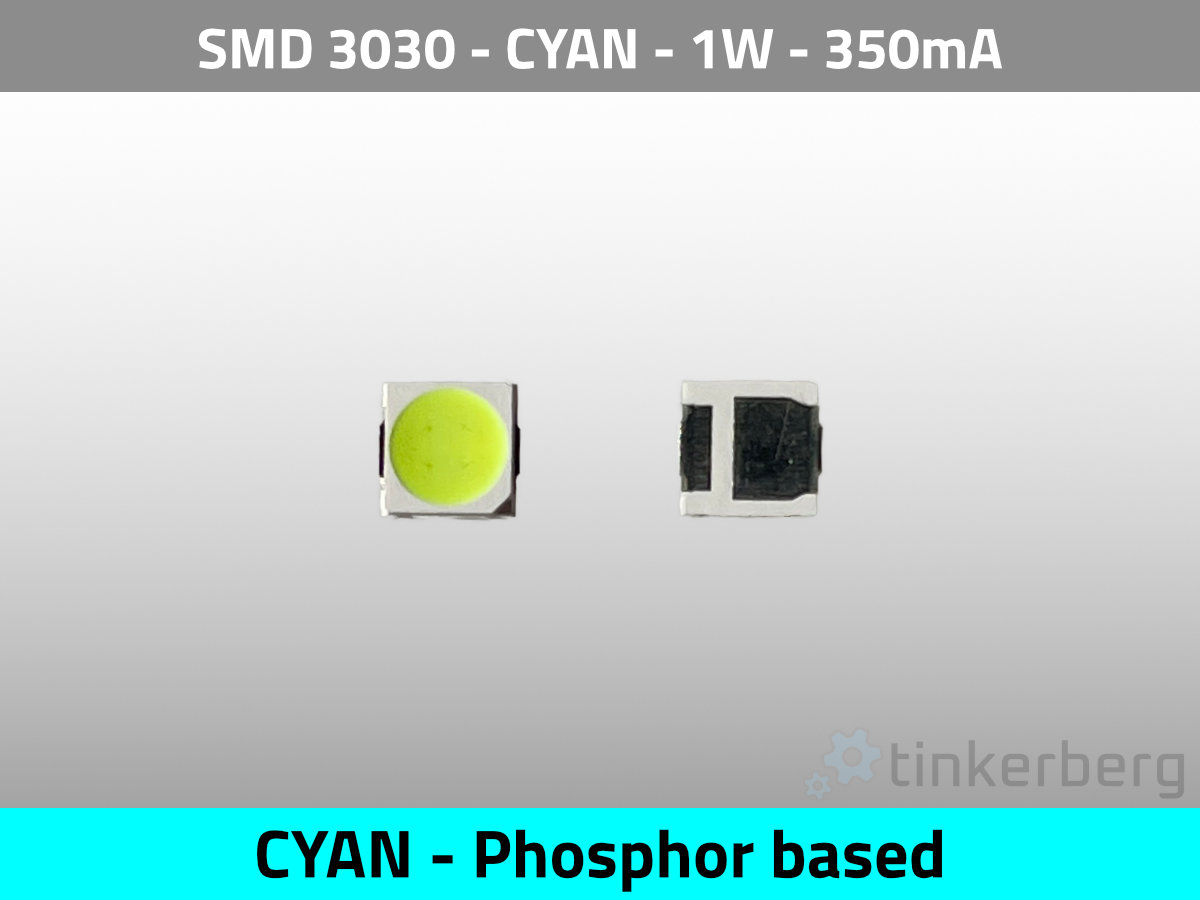

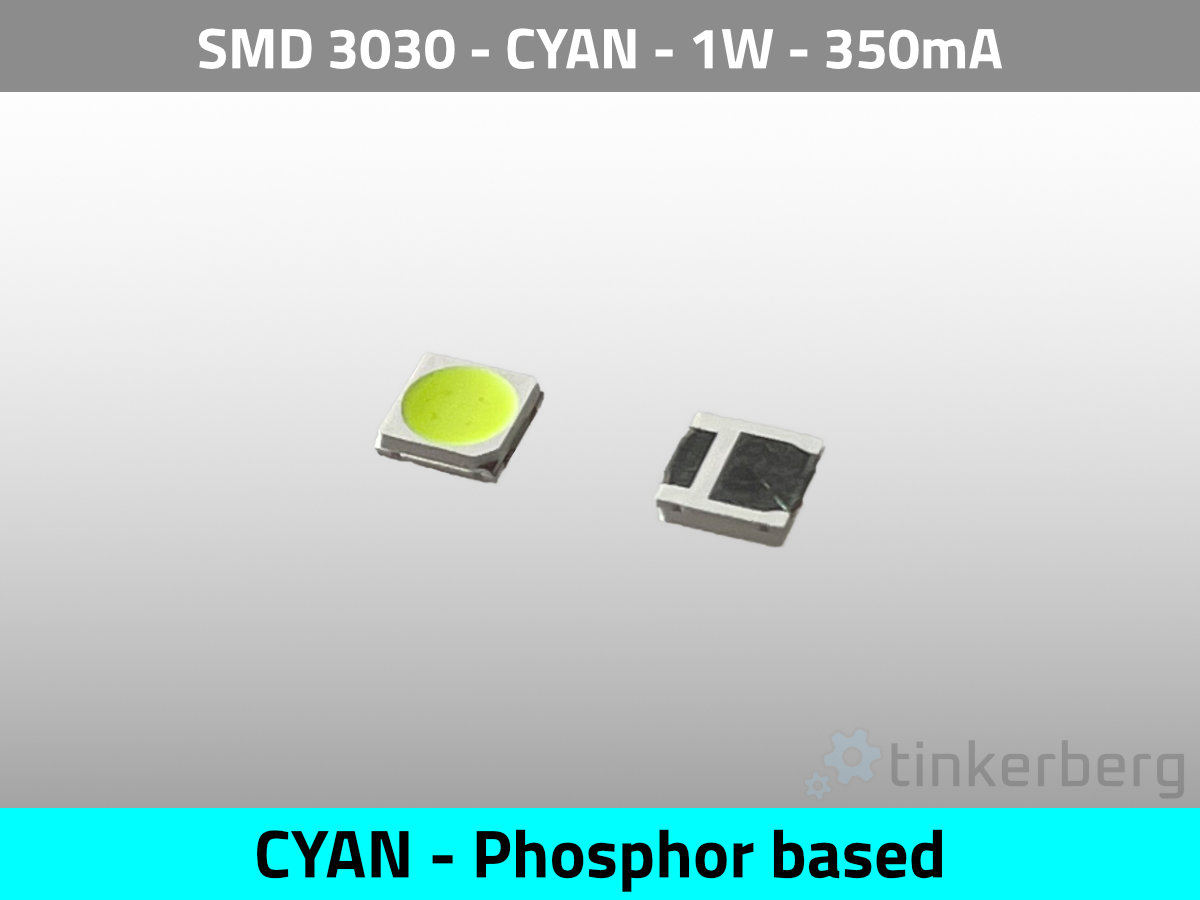

LED SMD 3030 Cyan 500nm 3V 1W 350mA 175lm
€0.57
Available, delivery time: 2-5 days
Product information "LED SMD 3030 Cyan 500nm 3V 1W 350mA 175lm"
LED SMD 3030 – cyan 500 nm, 3 V, 1 W, 350 mA, 79 lm. Monochromatic cyan LED from the GKORE CROMA Series. 500 nm for pure cyan light. For colour effects, RGBC systems and special lighting applications.
Key Technical Specifications
- Package: 3030 SMD
- Light colour: cyan, 500 nm
- Power: 1 W at 350 mA / 3 V
- Luminous flux: 79 lm
- Series: GKORE CROMA Series
Frequently Asked Questions
Cyan (500 nm) lies between green and blue and fills a spectral gap missing in standard RGB systems. In scientific applications, stage lighting and special colour effects, cyan enables colour tones that cannot be achieved with RGB alone. Also usable as an additional channel in RGBC or RGBAC systems.
The CROMA Series comprises monochromatic LEDs for targeted colour design and effect lighting – in contrast to the CINE Series, which is optimised for white light colour rendering for film. Further CROMA colours: amber 605 nm (A30005) and further monochromatic chips.
Yes. Via custom population (e.g. BAR2x3 Individual) this chip can be integrated on request.
| Beam Angle: | 120° |
|---|---|
| Brightness: | 175 lm |
| Color: | cyan |
| Forward Current: | 350 mA |
| Forward Voltage: | 3 V |
| LED Typ: | 3030 |
| Power: | 1 W |
| Wavelength: | 500 nm |
