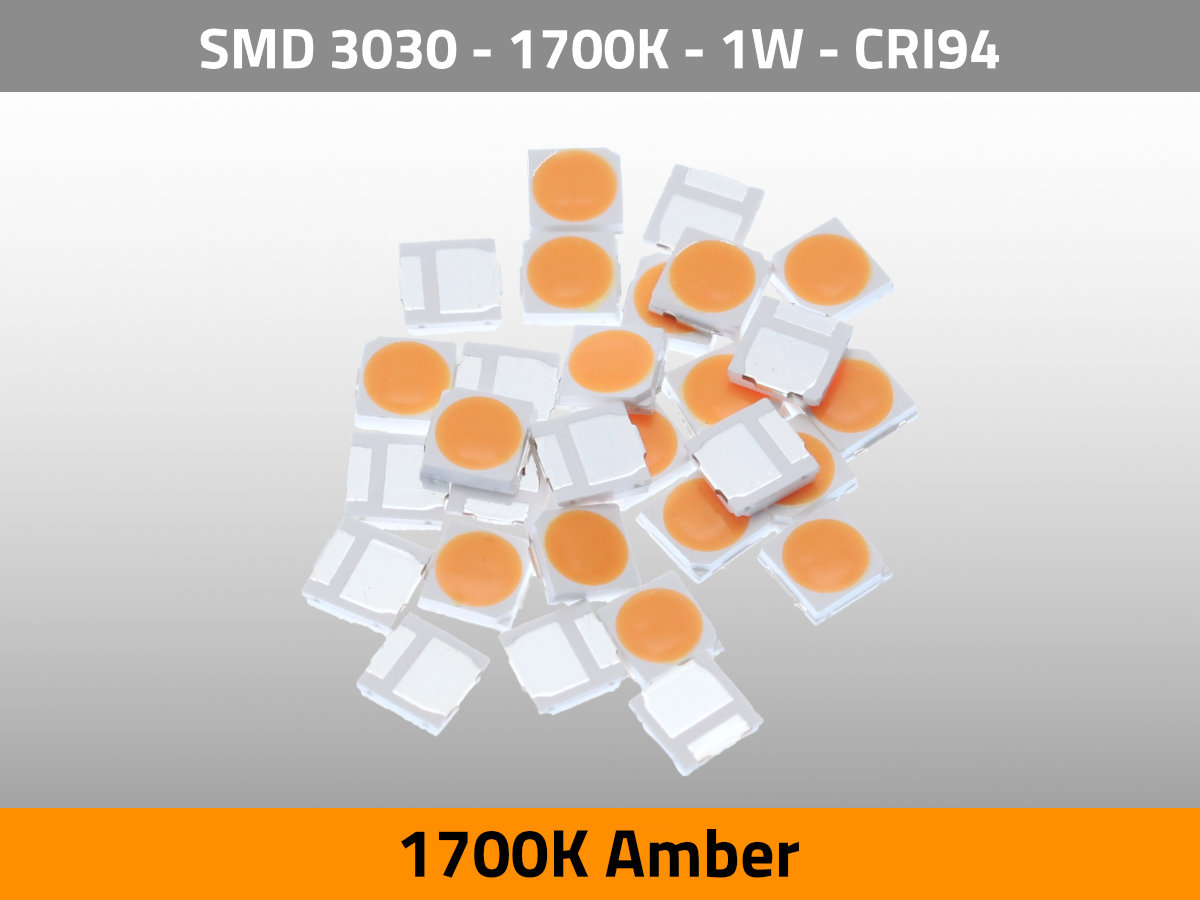

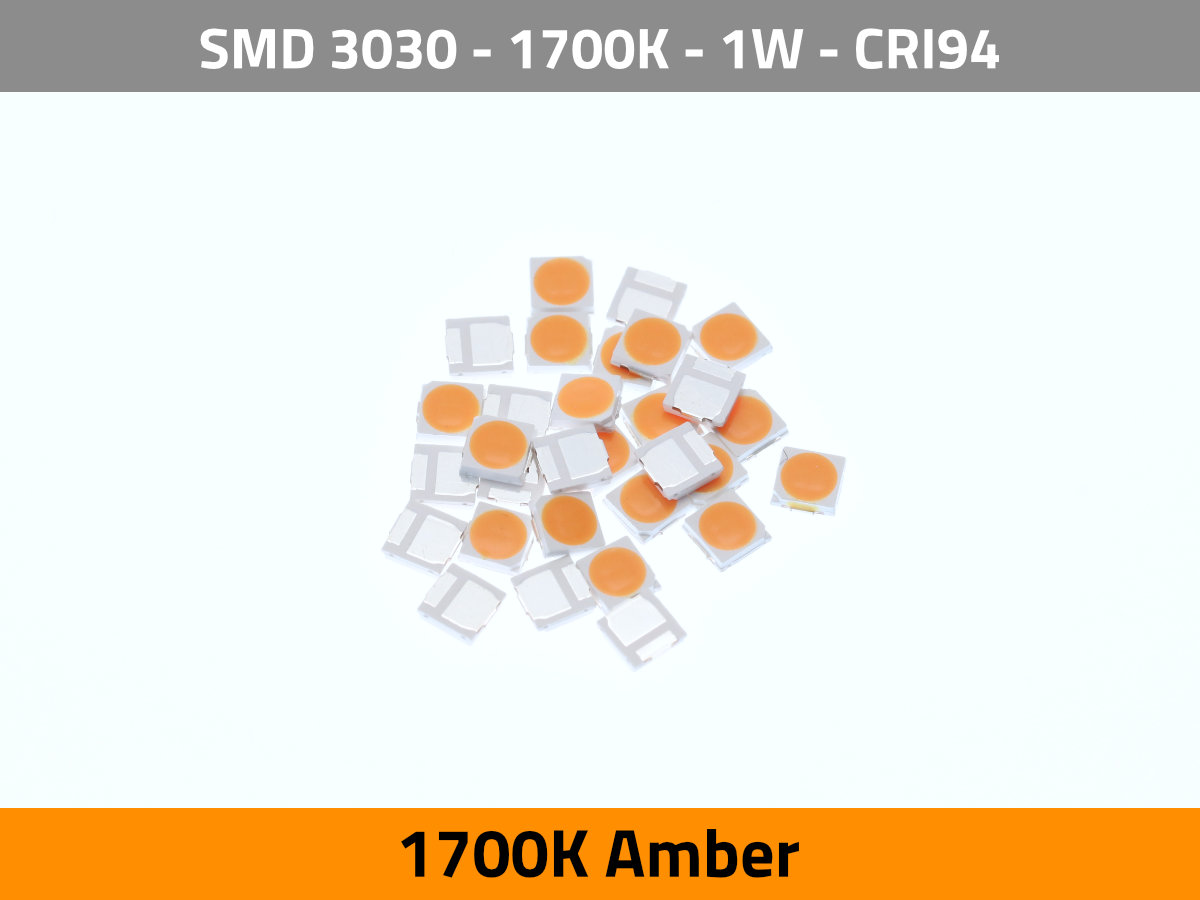

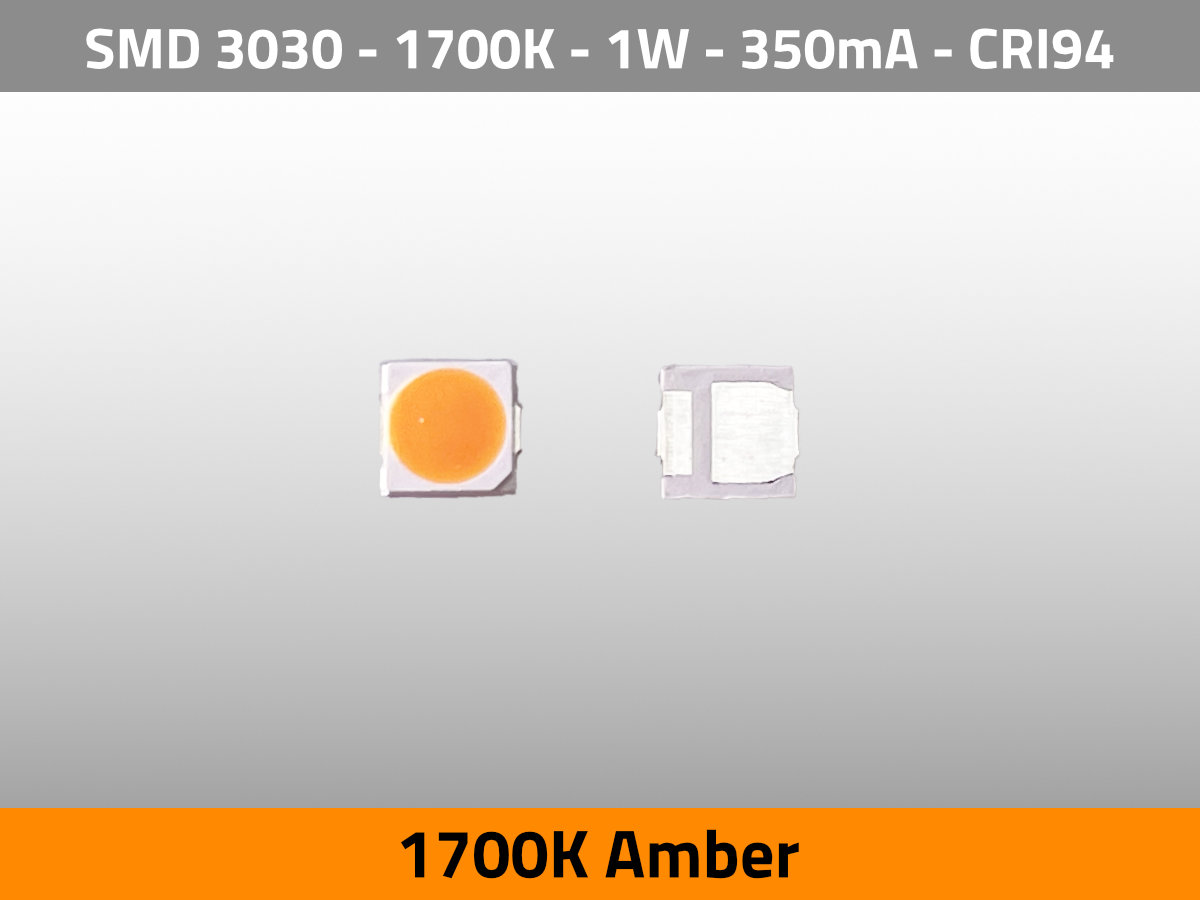

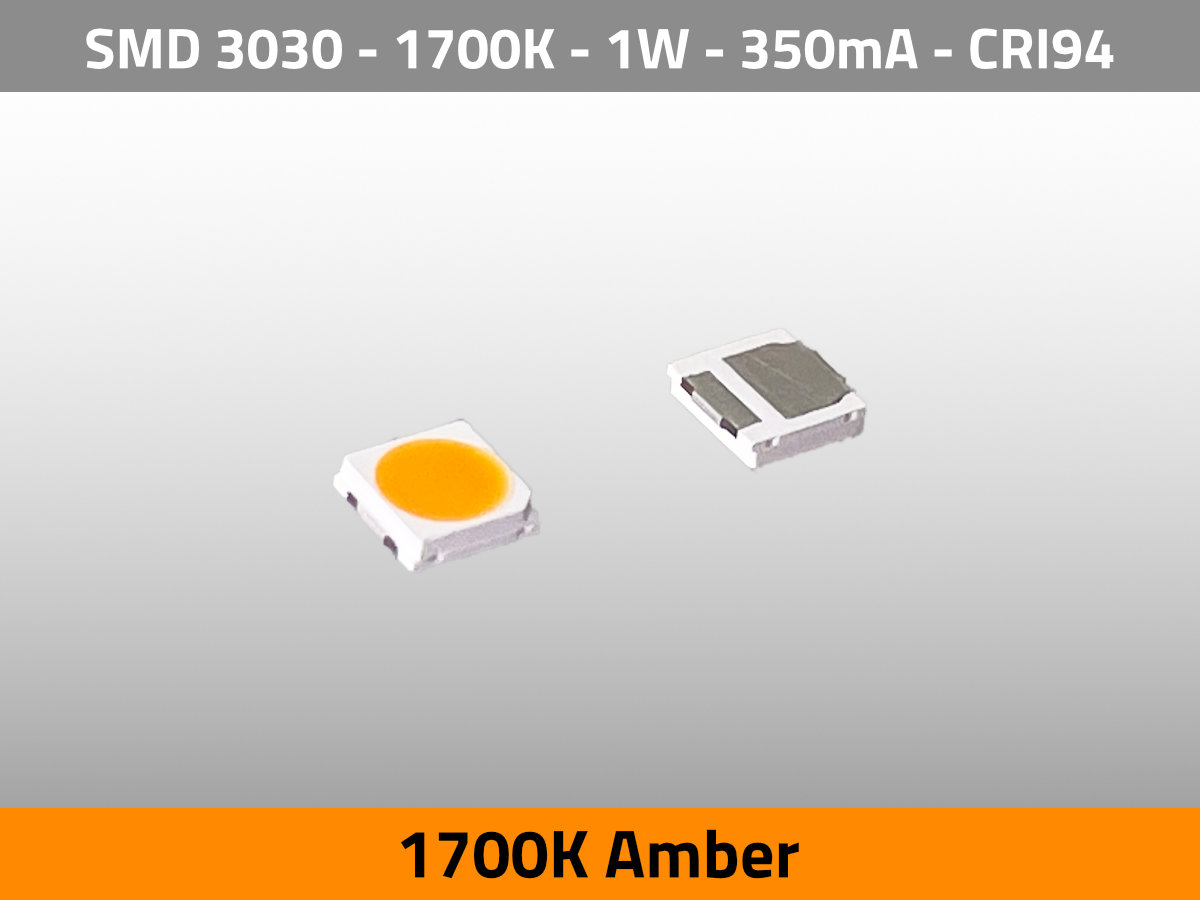

LED SMD 3030 1700K CCT 3V 1W 350mA 75lm CRI94 TLCI85
€0.57
Available, delivery time: 2-5 days
Product information "LED SMD 3030 1700K CCT 3V 1W 350mA 75lm CRI94 TLCI85"
LED SMD 3030 – 1700K amber, 3 V, 1 W, 350 mA, 75 lm, CRI 94, TLCI 85. Powerful 3030 chip in deep amber candlelight tone. For film and TV props, authentic oil and candle lamp retrofits. GKORE CINE Series.
Key Technical Specifications
- Package: 3030 SMD
- Colour temperature: 1700K – deep amber, candlelight
- Power: 1 W at 350 mA / 3 V
- Luminous flux: 75 lm
- Colour rendering: CRI 94 / TLCI 85
- Series: GKORE CINE Series
Frequently Asked Questions
The difference is minimally perceptible. Both are deep amber for candle/oil lamp character. The 3030 chip (1 W) delivers significantly more luminous flux (75 lm) than the 2835 0.5W (30 lm) – ideal when more brightness at the same colour temperature is desired.
The 3030 chip (3.0 × 3.0 mm) is larger and can handle more power. At 1 W it offers higher luminance on a smaller area than multiple 0.5W chips. Good for applications where a single, bright point of light is required.
In GKORE COB modules such as the COB9 1600K and for custom module populations on request.
| Beam Angle: | 120° |
|---|---|
| Brightness: | 75 lm |
| CRI: | CRI 94 |
| Color: | warmweiß |
| Color Temperature: | 1700 K |
| Efficiency: | WERT |
| Forward Current: | 350 mA |
| Forward Voltage: | 3 V |
| GKORE Series: | GKORE CINE Series |
| LED Typ: | 3030 |
| MacAdam / SDCM: | WERT |
| Power: | 1W |
| TLCI: | TLCI 85+ |
| x/y Coordinates: | WERT |
