What distinguishes the DISC5 from the BAR5-7070 module?

The only difference is the shape of the board: DISC is round, BAR is rectangular. The electrical properties are nearly identical. The DISC5 is suitable wherever a round light pattern or a round installation situation is desired – e.g. in downlights or round enclosures. The BAR5-7070 (A60010) has marginally more power (19W instead of 18W).

Do I need a heat sink?

At 18W continuous operation, a thermally conductive mounting surface or heat sink is recommended.

How many channels are needed on the controller?

5 independent PWM outputs for full control of all colours and colour temperatures.

What is the advantage of 7070LEDs over 2835?

The 7070 chip integrates all 5 colours (RGBCCT) in one chip. This produces a more homogeneous colour mix without visible colour separation, especially at short viewing distances.

LED Module DISC5-7070 RGB CCT 2700K 6500K 24V 18W

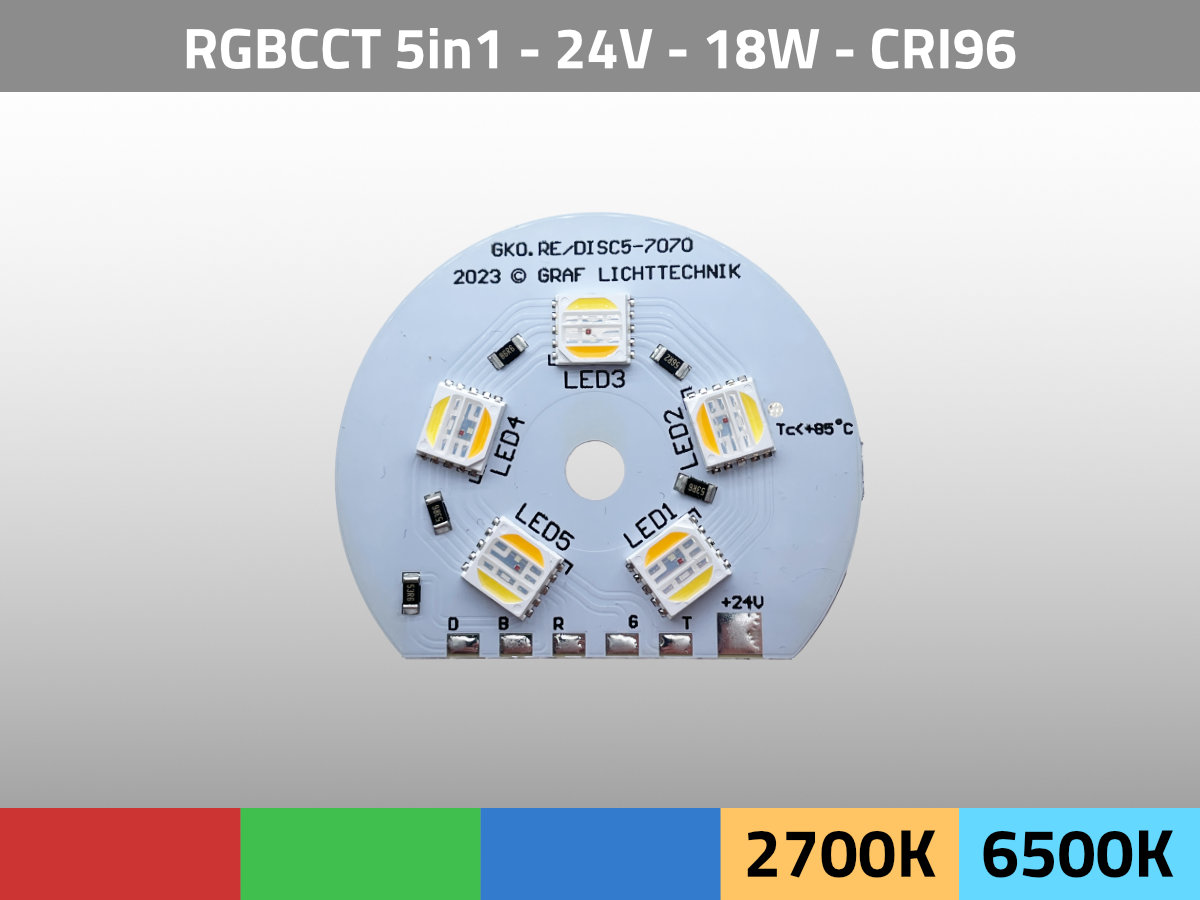

Name: LED Module DISC5-7070 RGB CCT 2700K 6500K 24V 18W
Brand: Graf Lichttechnik
SKU: A60009
Price: 12.90 EUR
Availability: InStock

GKORE LED Module DISC5 – 5-channel, 24V, 2700–6500K + RGB, 18W for professional film and effect lighting. Designed in Berlin, PWM dimmable.

€12.90

Available, delivery time: 2-5 days

Product number: A60009

Stock: 100

Manufacturer: Graf Lichttechnik

Manufacturer number: GKORE DISC5-7070

Product information "LED Module DISC5-7070 RGB CCT 2700K 6500K 24V 18W"

GKORE LED module DISC5-7070 RGB CCT – 5-in-1 RGBCCT, 24 V DC, 18 W. Round module with 7070 LEDs. 2700K and 6500K plus RGB. CRI 96, TLCI 95. Ideal for round fixture designs, ceiling recesses and circular light sources. Original GKORE product.

Key Technical Specifications

Power & voltage: 18 W at 24 V DC
LED type: 7070 5-in-1 RGBCCT
Colour temperature: 2700K and 6500K plus red, green, blue
Colour rendering: CRI 96 / TLCI 95
Form factor: round (DISC) – for circular fixture designs
Channels: 5 independently controllable

Typical Applications

Round downlights & recessed spotlights: circular light pattern
Film practical lighting: round fixture props with RGBCCT
Ceiling fixtures: even illumination through round arrangement
Architectural lighting: aesthetic round pattern for visible light sources

Beam Angle:	120°
Beam Angle:	120°
Brightness:	824.41 lm
CRI:	95 (6500K), 96 (2700K)
CRI R9:	85,7 (6500K), 97,5 (2700K)
Channels:	5
Color:	CCT + RGB
Color Temperature:	2700 K , 6500 K
Current:	0.75 A
Efficiency:	42.41
Energy Efficiency Class:	G
GKORE Series:	GKORE CINE Series
Height:	3 mm
IP Rating:	IP 20
LED Type:	7070
Length:	43.00 mm
Number of LEDs:	5
Power:	18 W
TLCI:	96 (2700K) , 96 (6500K)
TM30 Rf:	90,6 (6500K), 94,1 (2700K)
TM30 Rg:	100,0 (6500K), 101,1 (2700K)
Voltage:	24 VDC
Wavelength Blue:	447 nm
Wavelength Green:	520 nm
Wavelength Red:	625 nm
Width:	50.80 mm
