What applications is the ARRAY12 intended for?

Wherever compact, colour-accurate light with stepless colour temperature is required: film, photo, DIY fixtures or series builds. The daisy-chain capability makes the module particularly practical when you want to use several in a row.

What does "daisy-chainable" mean – and how does it work?

In short: you can connect multiple modules in series without running a separate feed to each one. Input and output are arranged so that the signal is simply passed from module to module. This saves a lot of cable and significantly simplifies the build.

Which lenses are compatible with this module?

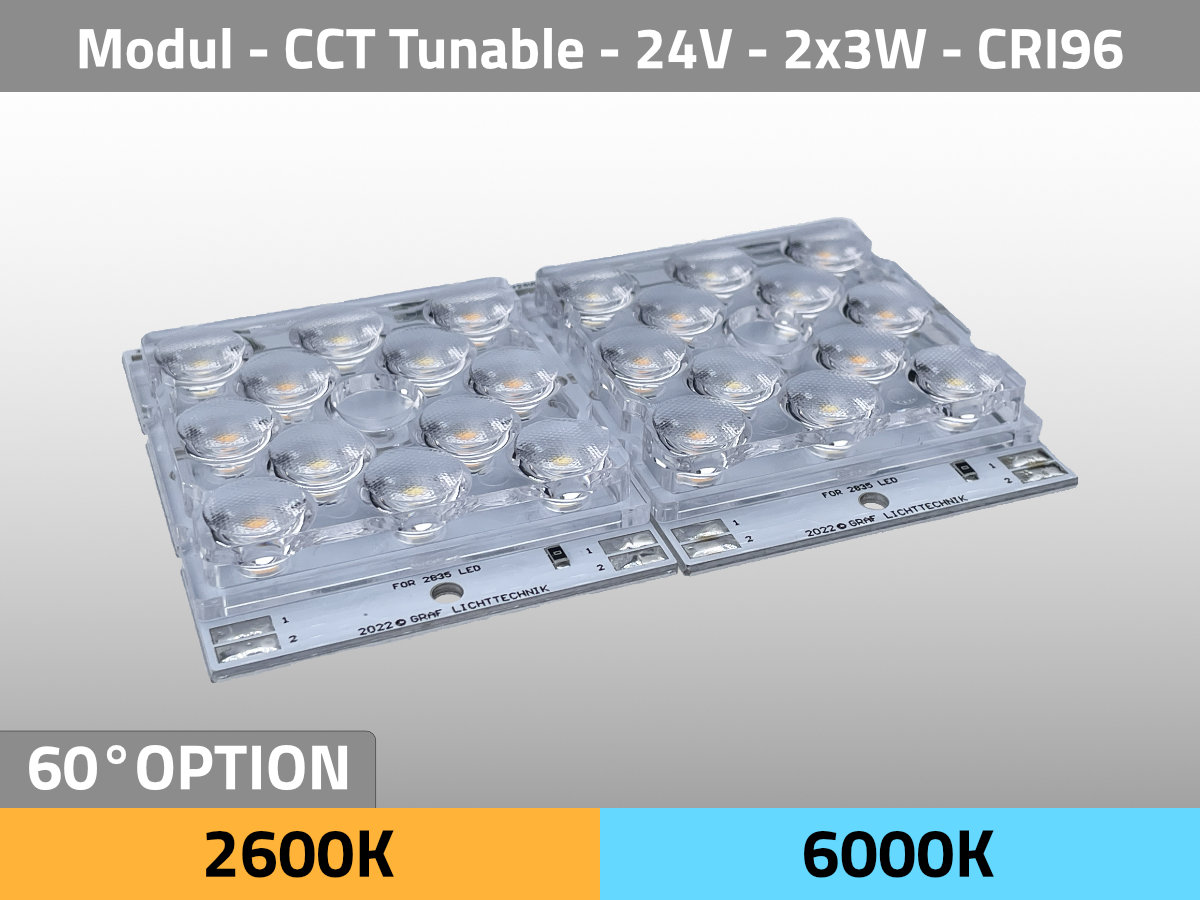

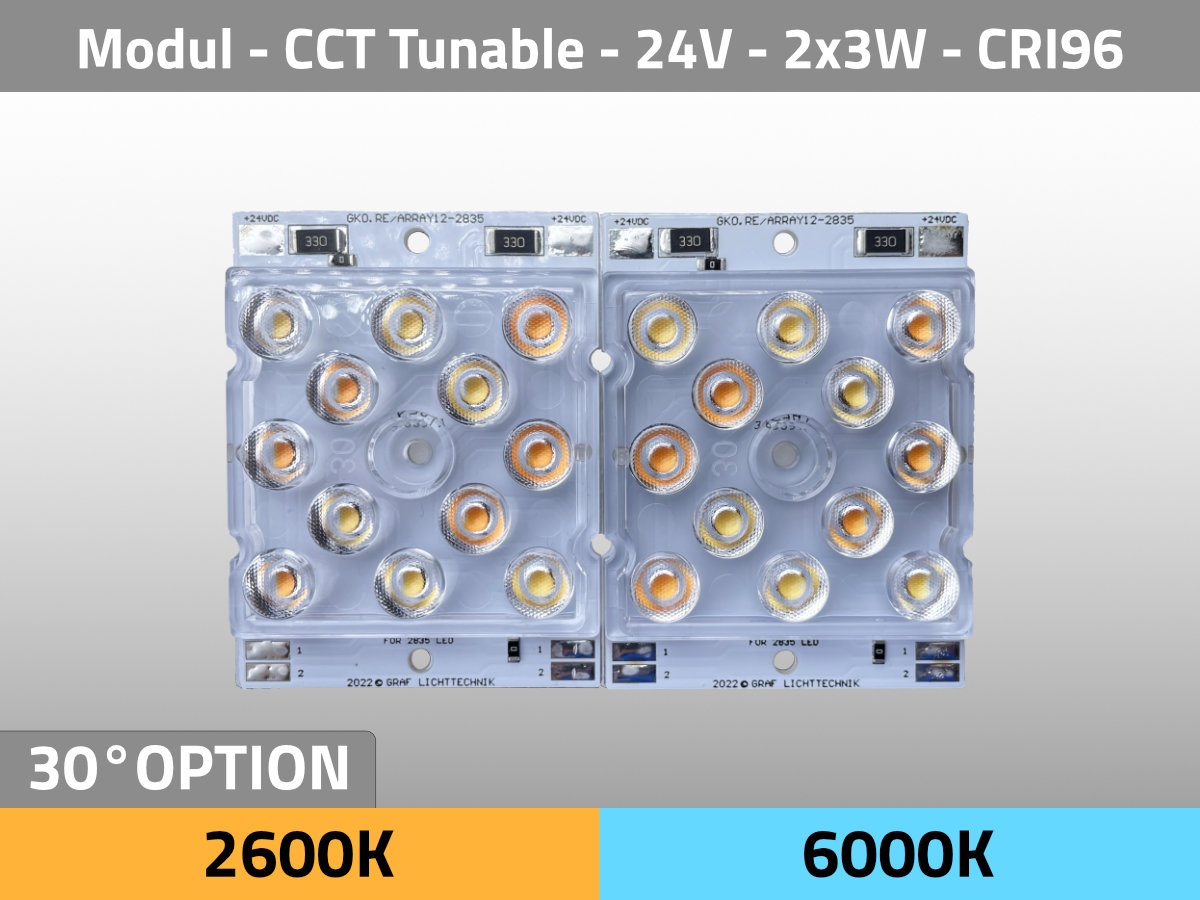

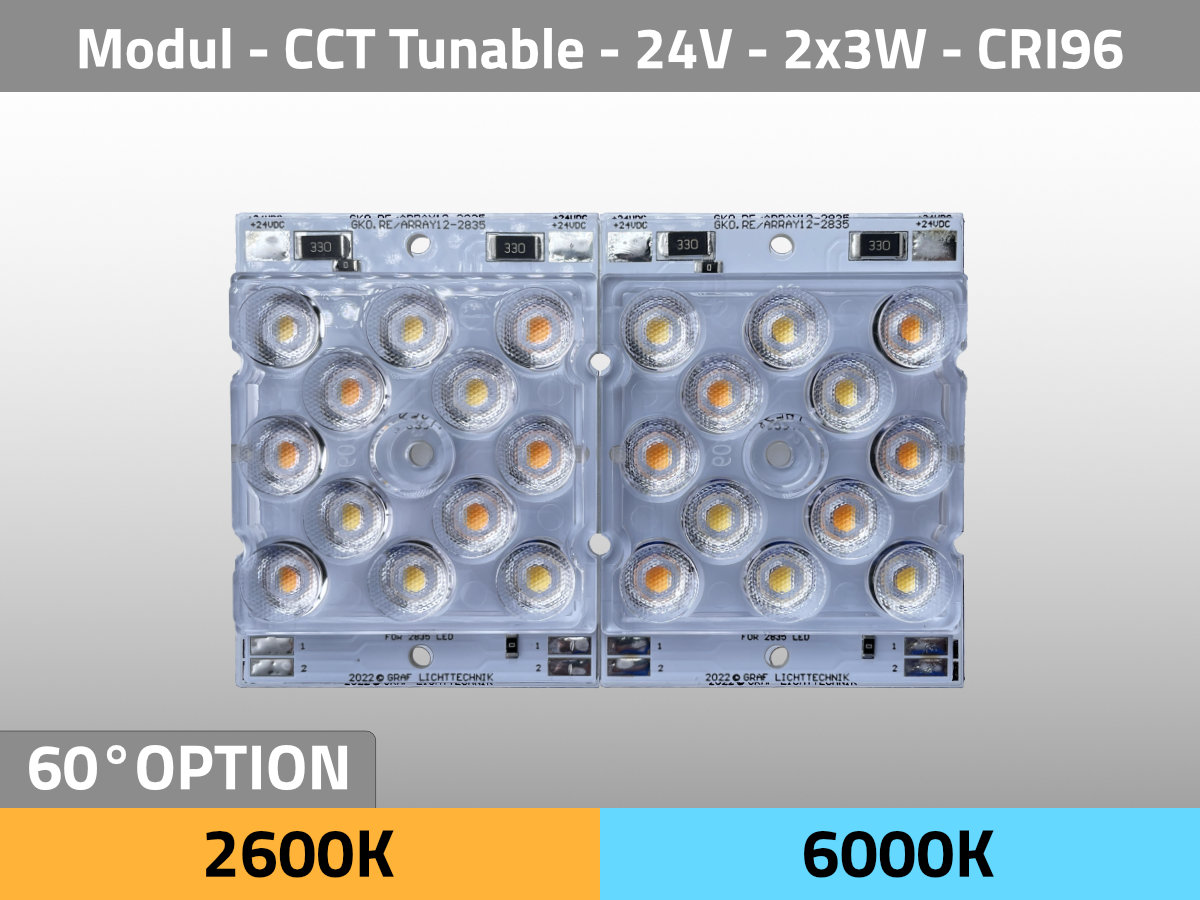

The ARRAY12 is designed for GKORE's 30° and 60° lens arrays. The lenses snap directly onto the module and focus the light – useful when instead of a wide 120° beam angle you need something more directed, for example for spot or accent lighting.

Can I mix the colour temperature steplessly?

Yes, that is exactly the principle: two channels (2600K and 6000K) that you dim independently via PWM. Depending on the mixing ratio, you get any colour temperature in between. Suitable LED dimmers and DMX controllers are available directly in the shop.

What power supply do I need?

24V DC, 0.25A per module at full load. For daisy-chain operation simply multiply the number of modules – 4 modules = 24W, 8 modules = 48W. Always plan in some reserve. Suitable power supplies and drivers are available in the shop.

Do I need a heat sink?

At 6W the heat is manageable. In well-ventilated situations the board itself is often sufficient. For continuous operation or in closed enclosures a small heat sink is worthwhile – this significantly extends the service life and costs very little.

How does the ARRAY12 differ from the BAR5?

The ARRAY12 is smaller, more affordable and specifically designed for 2-channel CCT with lens options. The BAR5 has 5 channels (optional RGB), 15W and is the right choice when you need more power or full colour mixing. Both are daisy-chainable.

LED Module ARRAY12 CCT 2600K & 6000K 24V 6W CRI96 TLCI96

Name: LED Module ARRAY12 CCT 2600K & 6000K 24V 6W CRI96 TLCI96
Brand: Graf Lichttechnik
SKU: A60008
Price: 10.90 EUR
Availability: InStock

2-channel 24V LED module 2600–6000K, 6W output, daisy-chainable. Ideal with 30°/60° lens arrays.

€10.90

Available, delivery time: 2-5 days

Product number: A60008

Stock: 20

Manufacturer: Graf Lichttechnik

Product information "LED Module ARRAY12 CCT 2600K & 6000K 24V 6W CRI96 TLCI96"

GKORE LED module, 2 channels, 24 VDC, artificial light 2600K, daylight 6000K. A full 6 W (2× 3 W) at your disposal. Thanks to the special design, this module is daisy-chainable without major effort.
We designed it so that it can be combined with our 30° or 60° lens arrays.

Original GKORE product – two single-colour channels. 24 V. Easily dimmable via PWM.
Developed and manufactured in our own facility, this LED module offers 2 individual channels with 6 LEDs each.

Key Technical Specifications

Power & voltage: 6 W at 24 V DC (0.25 A)
Colour temperature (CCT): 2600K (artificial light) and 6000K (daylight) – steplessly mixable via PWM
Colour rendering: CRI 96 / TLCI 96
Form factor: 65.5 × 50 mm, flat (2.3 mm) – daisy-chainable
Lens-compatible: 30° and 60° array optics directly attachable

Typical Applications

Film & video production: CRI 96 / TLCI 96 for camera-ready, colour-accurate light
Photo studio: stepless colour temperature adjustment for different shooting situations
DIY fixture building: compact, easy to wire, ideal for series builds via daisy-chain
Event & stage lighting: connect multiple modules in series easily
Architectural & accent lighting: with 30°/60° lens array for directed light control

Beam Angle:	120°
CRI:	96
Channels:	2
Color:	CCT
Color Temperature:	2600 K, 6000 K
Current:	0,25 A
GKORE Series:	GKORE CINE Series
Height:	2.3 mm
IP Rating:	IP 20
LED Type:	2835
Length:	50 mm
Number of LEDs:	12 (2x6 LEDs)
Power:	6 W
TLCI:	96
Voltage:	24 VDC
Width:	65.50 mm
