LED Modul COB12 12V 2x3W 2600K 6000K CCT Tunable CRI96 TLCI95

Flexible COB12 2ch LED module with CRI98/TLCI98 for film and TV. Compatible with LEDiL optics, customizable and requires proper cooling.

€8.90

Available, delivery time: 2-5 days

Product number: A60006-2660

Stock: 30

Manufacturer: Graf Lichttechnik

Manufacturer number: A60006-2660

Product information "LED Modul COB12 12V 2x3W 2600K 6000K CCT Tunable CRI96 TLCI95"

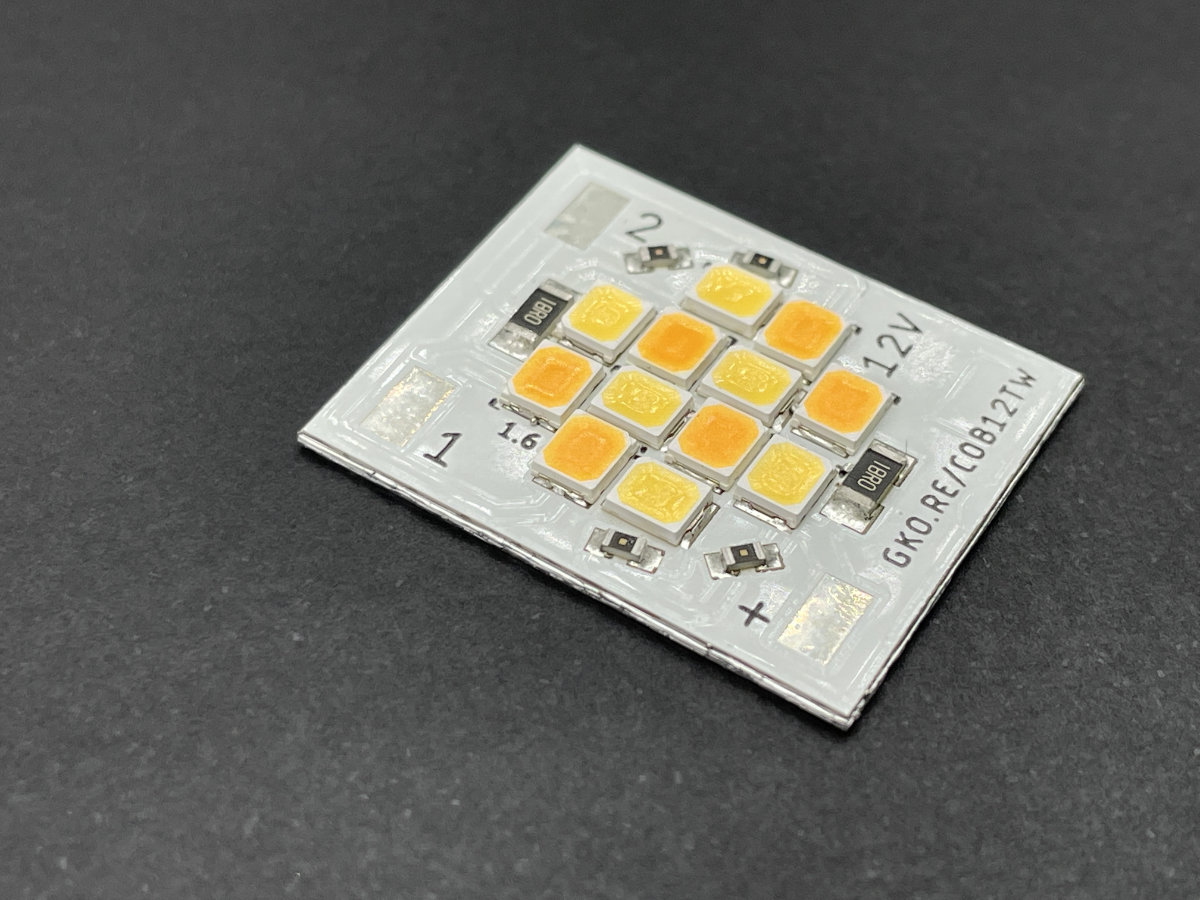

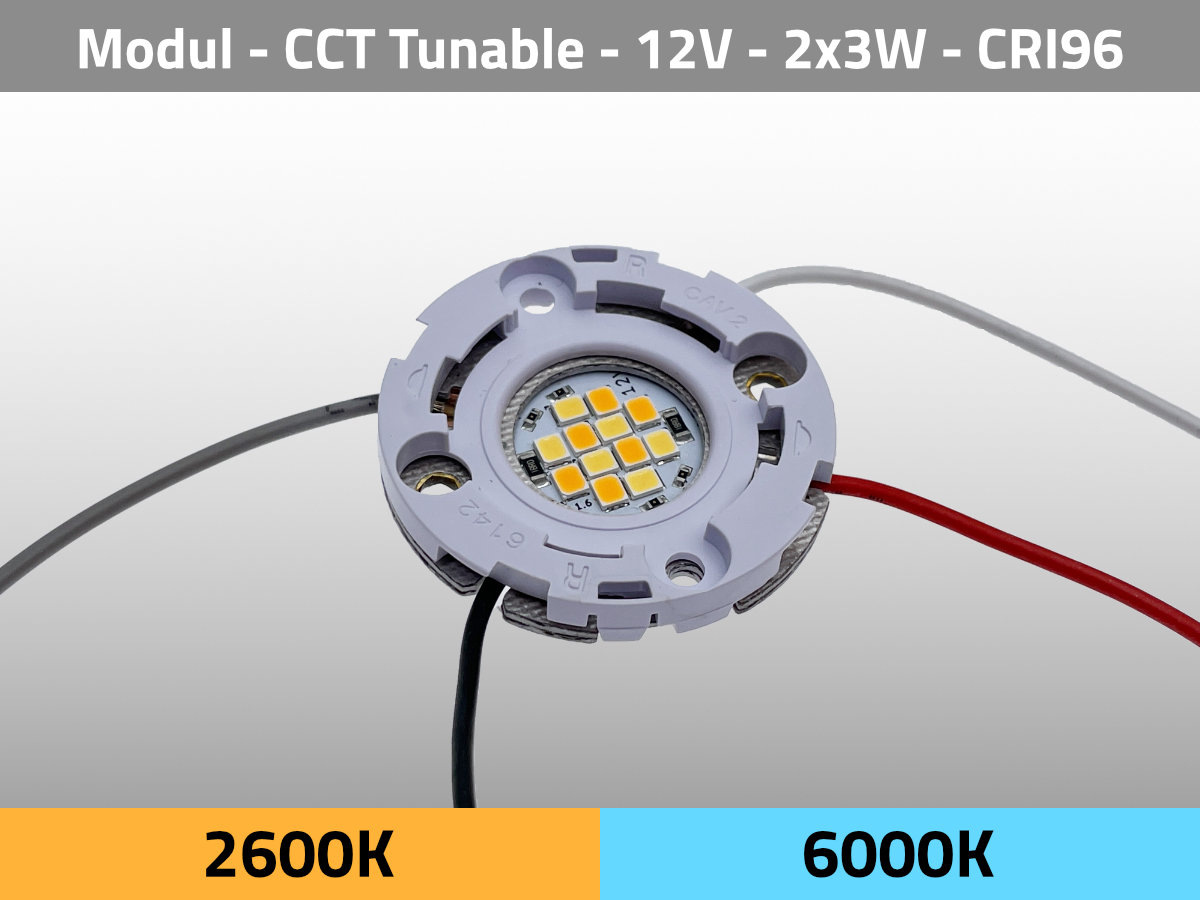

GKORE LED module COB12 – 2-channel, 12 V DC, 2600K artificial light and 6000K daylight. Total power 6 W (2× 3 W). COB form factor. CRI 96, TLCI 95. Flexible optics mounting with LEDiL lenses. Ideal for film and TV. Individual population available.

Key Technical Specifications

Power & voltage: 6 W (2× 3 W) at 12 V DC
Colour temperature (CCT): 2600K and 6000K – steplessly mixable
Colour rendering: CRI 96 / TLCI 95
Form factor: COB12 – compact, high luminance

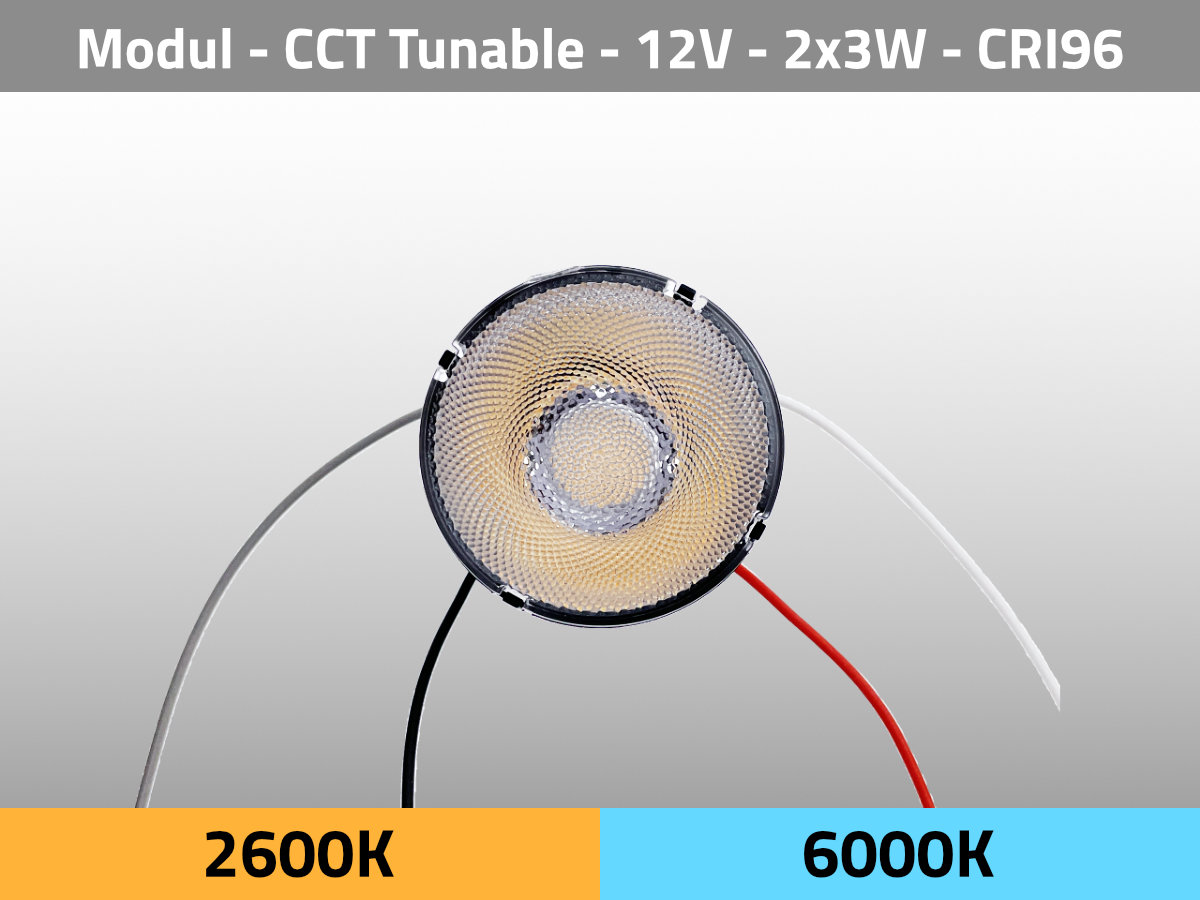

Optics-compatible: LEDiL lenses directly attachable

Typical Applications

Film & TV: TLCI 95 for camera-ready white light
Directed light: with LEDiL optics for precise light control
Small studio fixtures: compact CCT source for custom builds
Prototyping: high-quality COB light source for individual designs

Frequently Asked Questions

What is the difference from the 1600K/6000K variant?

The amber variant (A60006-1660) covers a more extreme range (deep amber to cool blue). This 2600K/6000K variant is intended for classic CCT lighting with natural white light tones – the standard choice for film and photography.

Which LEDiL optics are compatible?

The COB12 module is designed for common LEDiL lens holders. Please check fit in the LEDiL catalogue or get in touch.

Is individual population available?

Yes. GKORE manufactures to specification in-house in Berlin on request.

Which controller is suitable?

For 12 V operation with 2 channels, the FX2 nano 2 (CT0033).

Beam Angle:	120°
Brightness:	571 lm
CRI:	96
Channels:	2
Color:	CCT variabel
Color Temperature:	2600 K, 6000 K
Current:	0.5 A
GKORE Series:	GKORE CINE Series
Height:	1,8 mm
IP Rating:	IP 20
LED Typ:	2835
LES:	15
Length:	24 mm
Number of LEDs:	12
Power:	6W
TLCI:	95
Voltage:	12 VDC
Width:	20 mm
x/y Coordinates:	0,3247/0,3357 (6000K), 0,4725/0,4206 (2600K)
