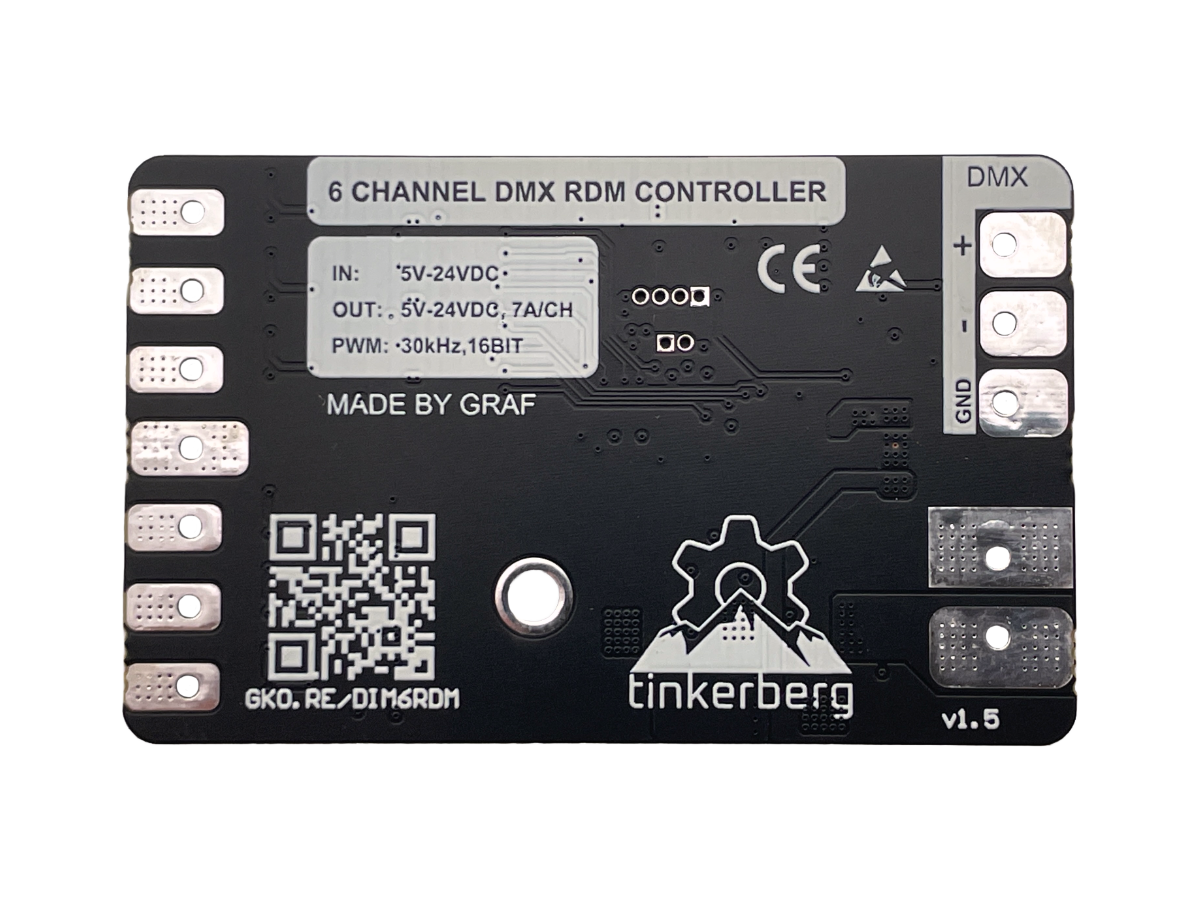

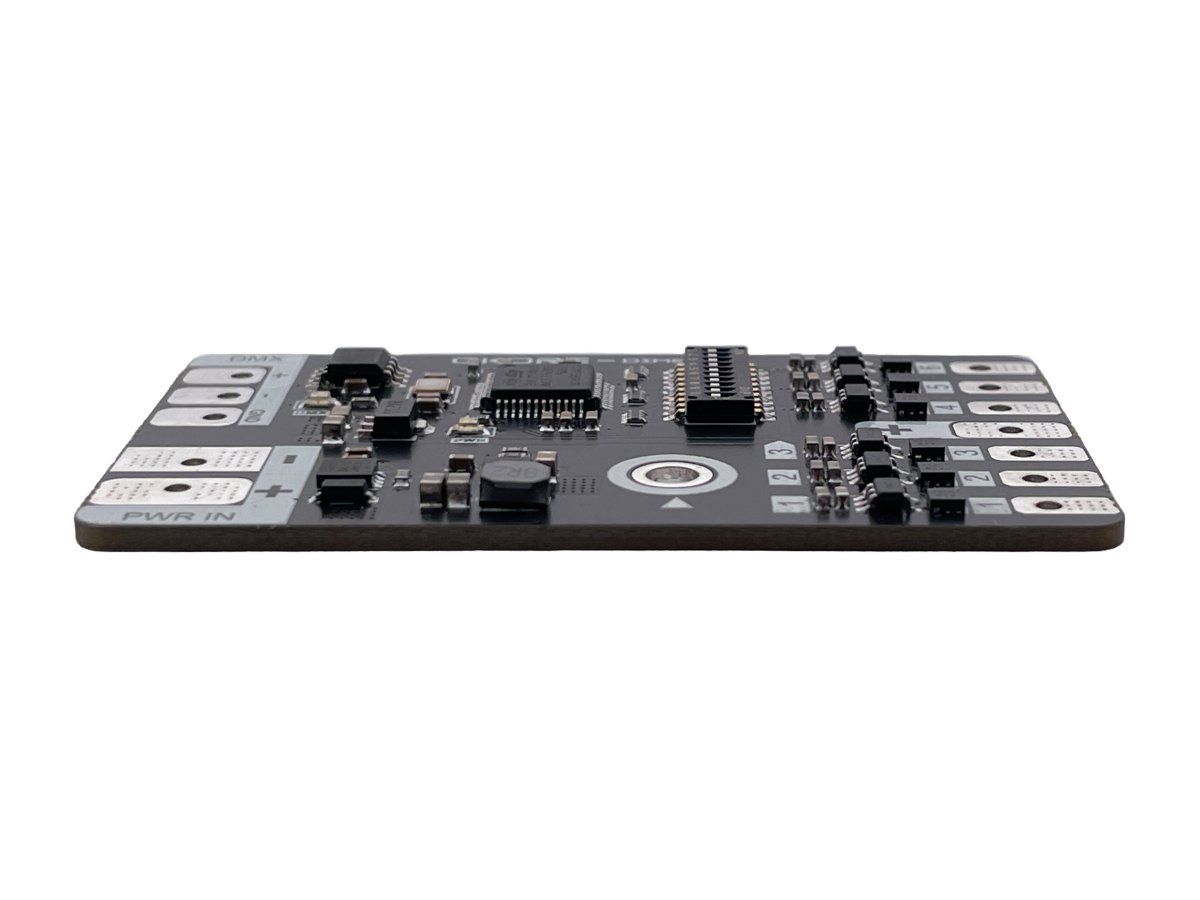

GKORE DIM6 DMX RDM 6ch LED Controller 30kHz 16Bit

The GKORE DIM6 RDM is a 6-channel LED dimmer for DMX512 installations with full RDM support. It drives six independent LED outputs with 16 bit resolution for perfectly smooth, step-free dimming. Extensive configuration via RDM, such as PWM frequency and dimming curves, delivers flicker-free, precisely tuned light output in any setup.

Technical highlights at a glance

• Channels: 6x PWM, 16 bit resolution, for smooth, step-free dimming
• Control: DMX512 with full RDM support
• Addressing: DIP switches on the unit or fully remote via RDM
• PWM frequency: 1 kHz to 30 kHz, adjustable in 27 steps
• Dimming curves: linear, exponential, logarithmic, S curve
• DMX-on-Hold last value / off / fade-out
• Status LED power / DMX
• Standards compliant per ANSI E1.20/E1.37-1

Typical applications

• Stage and studio technology: precise, flicker-free light control for film and broadcast production
• System integration: RDM capable installations
• Architectural lighting and permanent installations: stable addressing and remote configuration
• Maker and DIY projects: an easy entry point into DMX controlled LED technology
• Home cinema, Halloween and cosplay lighting: fine, smooth effects with no technical background needed
• Aquarium and terrarium lighting: smooth, gradual transitions for natural looking lighting moods

More detail

DMX512 is the standard for professional lighting control, and RDM (Remote Device Management) extends this standard with the ability to read out and change addresses, settings and device status over the same DMX cable, with no separate control line and no need to stand next to the device.

With 16 bit resolution per channel, the DIM6 RDM dims extremely finely and smoothly. Even during very slow fades and at low brightness, a clear advantage over simpler 8-bit dimmers, where visible brightness steps quickly become noticeable.

The PWM frequency can be freely set in 27 steps between 1 kHz and 30 kHz. PWM (pulse width modulation) is the technique that makes LED dimming possible in the first place: the light is switched on and off very rapidly, and the eye perceives only the average brightness. A PWM frequency set too low can show up as flicker or banding on camera. The DIM6 RDM can therefore be tuned for flicker-free operation for broadcast and film production, while also being more comfortable to the naked eye at low brightness levels.

Four selectable dimming curves (linear, exponential, logarithmic, S curve) adjust the brightness response during dimming as needed.

The DIM6 RDM is also prepared for edge cases: in the event of DMX signal loss, it can be configured to hold the last value, cut to black immediately, or fade out gently after a delay. This matters for professional installations, and it is just as practical for hobby setups, for example if the controller drops out or a cable comes loose.

A status LED on the unit itself shows immediately whether a valid DMX signal is present, which makes troubleshooting during first setup much easier.

The GKORE DIM6 RDM complies with ANSI E1.20 (RDM) and E1.37-1, allowing it to run reliably alongside devices from other manufacturers such as ARRI, Aputure or LiteGear in the same setup, whether in a professional rig or a home hobby build.

The terminal blocks are not included in the scope of delivery and should be ordered separately if needed.
