LED Strip CCT 2200K-6500K 24V 19.2W/m 120LEDs/m CRI90
€79.92
% €99.90 (20% saved)
Available, delivery time: 2-5 days
Product information "LED Strip CCT 2200K-6500K 24V 19.2W/m 120LEDs/m CRI90"
LED strip CCT 2200K–6500K – 24 V, 19.2 W/m, 120 LEDs/m, CRI 90, IP20. Flexible 2-in-1 3528 strip with full CCT range from deep artificial light to daylight. GKORE PRO Series. Ideal for set decoration, ambient lighting and architectural lighting. 5 m reel.
Key Technical Specifications
- Colour temperature: 2200K – 6500K (steplessly adjustable via CCT dimmer)
- Voltage: 24 VDC
- Power: 19.2 W/m
- LED density: 120 LEDs/m (2-in-1 3528)
- Colour rendering: CRI 90+
- Protection class: IP20
- Reel: 5 m
- Series: GKORE PRO Series
Frequently Asked Questions
CCT (Correlated Color Temperature) means the strip has two white channels – one for warm white (2200K) and one for cool white (6500K). Following the common anode principle, it requires 3 pins (2 channels + 1× shared positive rail). With a CCT-capable dimmer, the colour temperature can be mixed steplessly between 2200K and 6500K.
GKORE PRO is optimised for efficient, high-quality general lighting. GKORE CINE is designed for film productions and has higher CRI/TLCI values (CRI 96+, TLCI 97+) for camera-ready light. For professional film sets, the CINE strips such as A10004k-95 are recommended.
A 2-channel CCT PWM dimmer for 24 V. The matching LED effect dimmers in the shop support CCT control and can also be driven via DMX.
Cut every 8.3 mm (1 LED per cut unit at 120 LEDs/m). Always cut only at the marked cut points.
| Beam Angle: | 120° |
|---|---|
| Brightness: | 1646 lm/m |

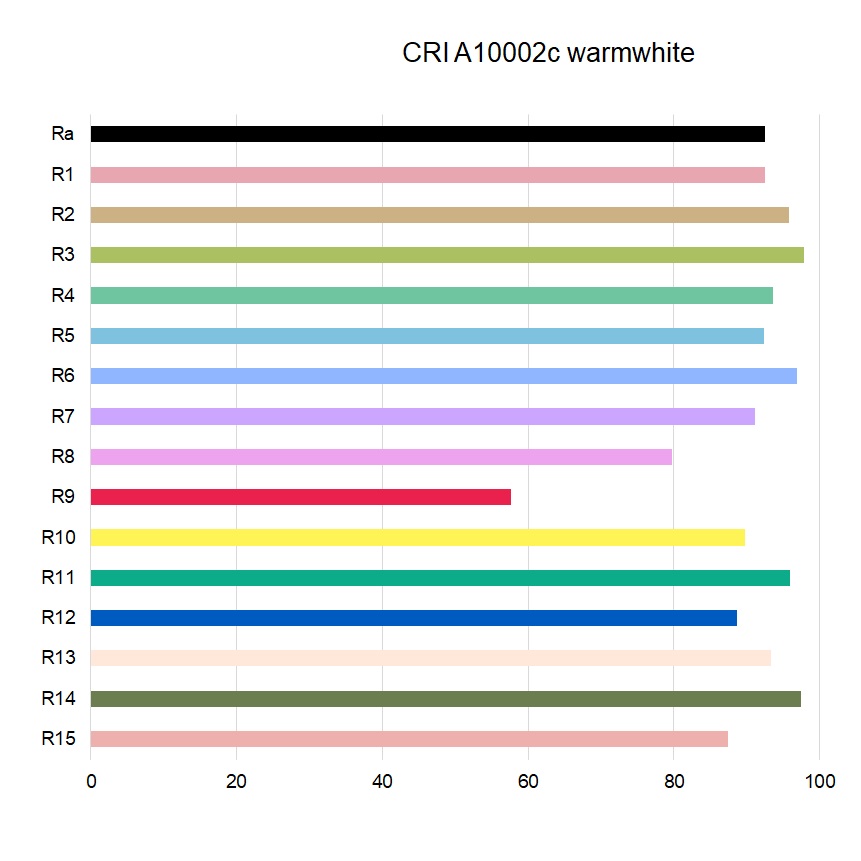

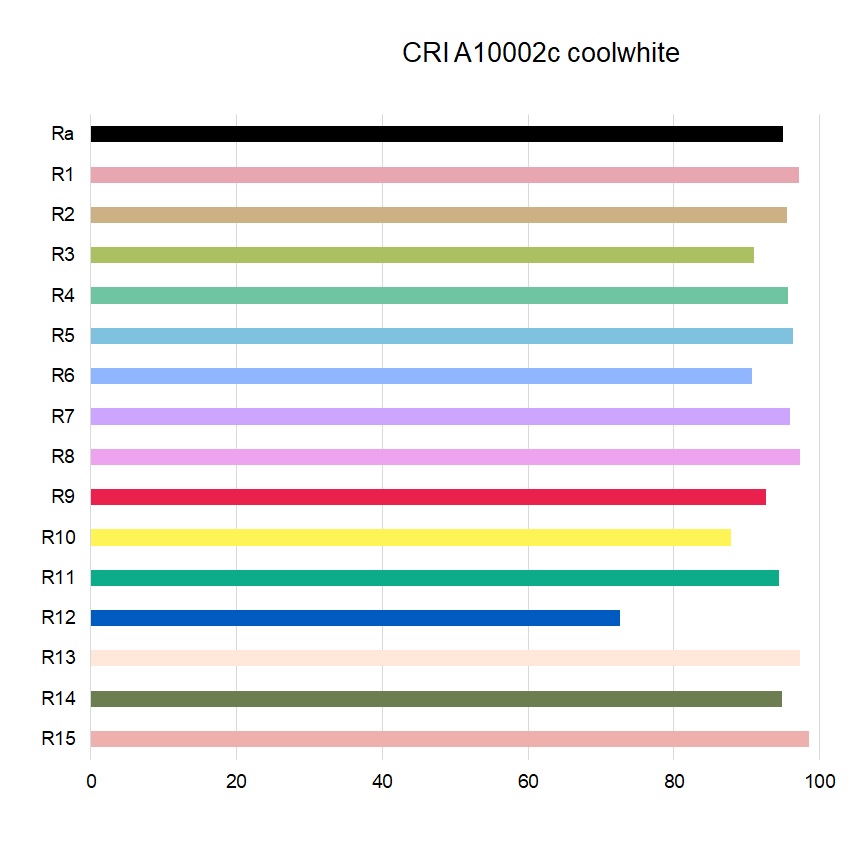

| CRI: | 92 (2200K) , 95 (6500K) |
| Color: | CCT |
| Color Temperature: | 2200 K , 6500 K |
| Current: | 0,77 A/m |
| Efficiency: | 86 lm/W/m |
| GKORE Series: | GKORE PRO Series |
| Height: | 2 mm |
| IP Rating: | IP 20 |
| LED Cut: | 5 cm |
| LED Typ: | 3528 2in1 |
| Length: | 5 m |
| Power: | 19,2 W/m |
| Quantity of LED: | 120 LEDs/m |

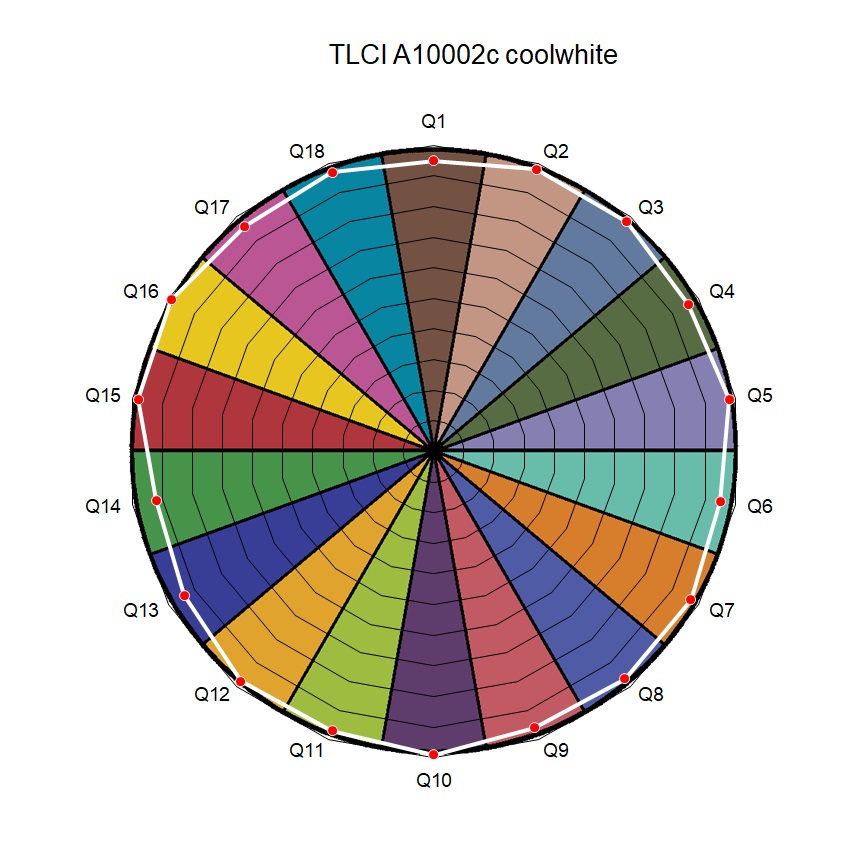

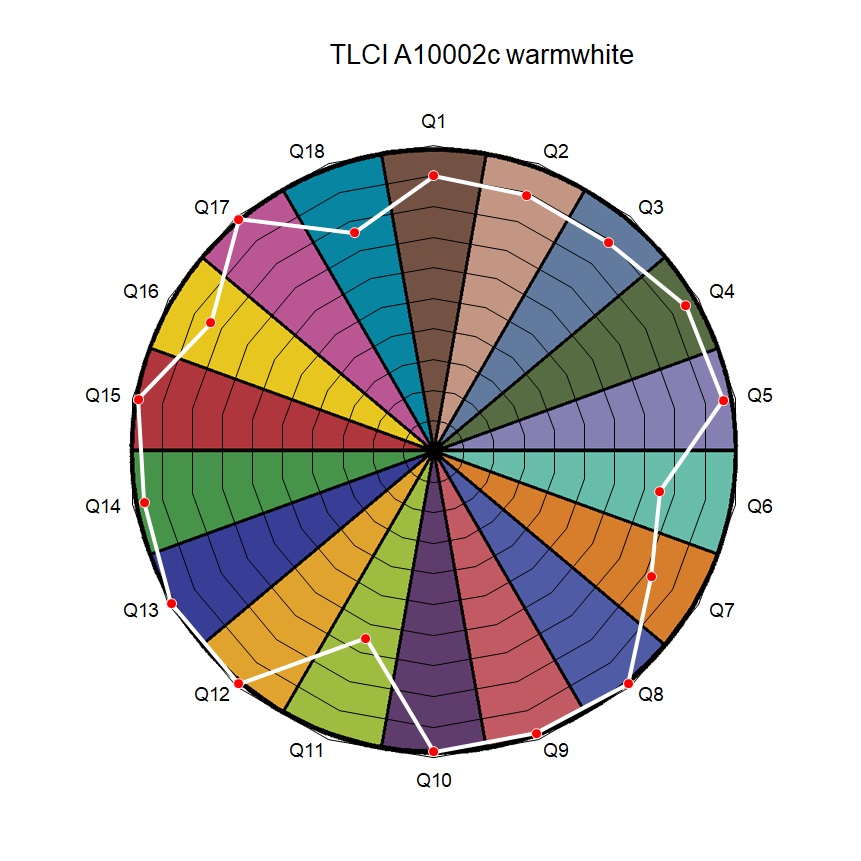

| TLCI: | 87 (2200K) , 97 (6500K) |
| Voltage: | 24 VDC |
| Width: | 10 mm |

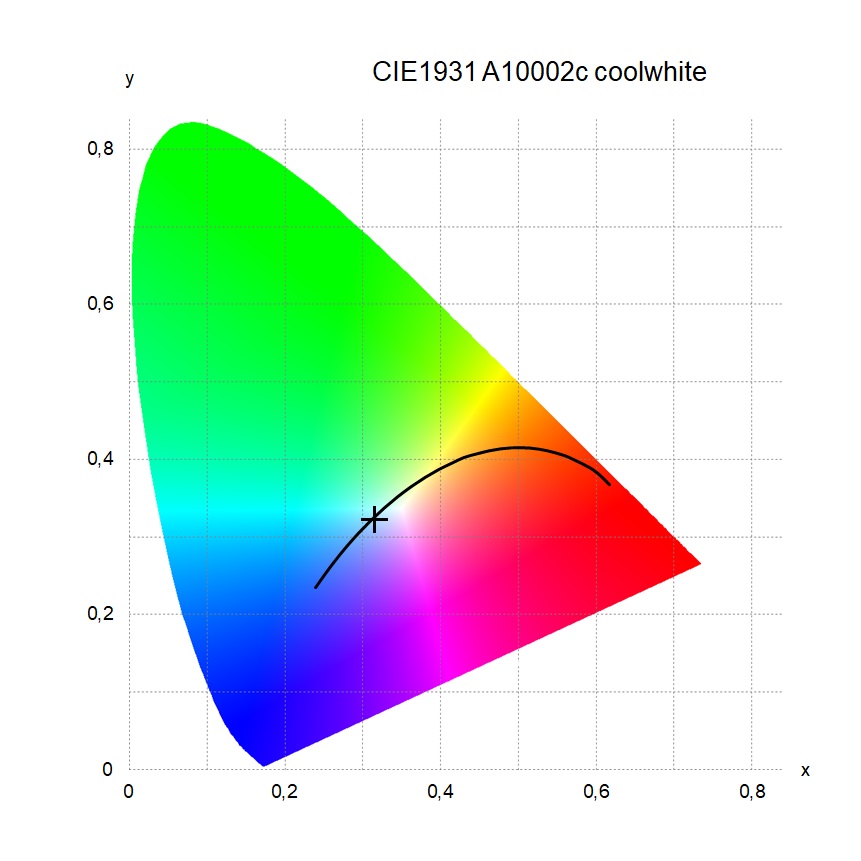

| x/y Coordinates: | 0,3155/0,3226 (6500K), 0,5072/0,4177 (2200K) |
